Description:Wide Input Voltage Range: 4.5 V to 65 V; Switching Frequency: 100 kHz to 1 MHz; 0.6 V Reference Voltage with 0.67% Accuracy; Selectable CCM PWM Mode or PFM Mode for Light Loads; Over Current Protection, Thermal Shutdown, Over Voltage Protection, Under Voltage Protection and Short−circuit Protection; External Compensation for Wide Operation Range; Adjustable Soft−Start & Pre−Bias Startup; Enable Function with Adjustable Input Voltage Under−Voltage−Lock−Out (UVLO); Power Good Indicator; Dual LDOs for Single S
A good PCB layout is crucial for the FAN65004B. Ensure a solid ground plane, keep the input and output capacitors close to the IC, and use a Kelvin connection for the sense resistors. A 4-layer PCB with a dedicated power plane is recommended.
Select an inductor with a high saturation current rating, low DCR, and a suitable inductance value. The FAN65004B datasheet provides a formula to calculate the inductor value based on the input voltage, output voltage, and switching frequency.
The FAN65004B is rated for operation up to 125°C junction temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 85°C to ensure a safe margin.
The FAN65004B requires a compensation network to ensure stability. Use the datasheet's guidelines to calculate the compensation components, and then fine-tune them using simulation tools or empirical methods to achieve optimal performance.
To minimize EMI, use a shielded inductor, keep the switching node (SW) away from sensitive nodes, and add EMI filters (e.g., common-mode chokes, capacitors) to the input and output lines. Ensure proper PCB layout and grounding to reduce radiation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN65004B Overview

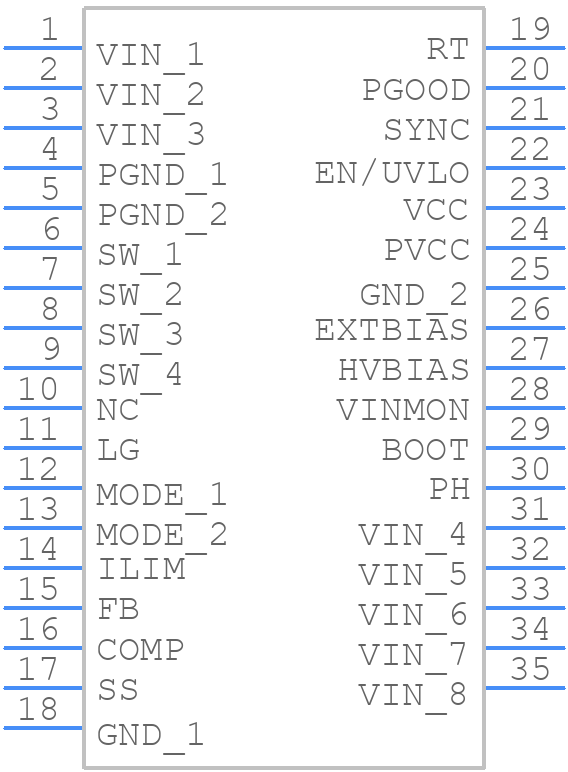

Use the download button to access the FAN65004B schematic symbol, PCB footprint, and 3D model.
