Description:0.6 V Reference Voltage with 0.67% Accuracy; Dual LDOs for Single Supply Operation and to Reduce Power Loss; External Compensation for Wide Operation Range; Adjustable Soft−Start & Pre−Bias Startup; Wide Input Voltage Range: 4.5 V to 65 V; Switching Frequency: 100 kHz to 1 MHz; Selectable CCM PWM Mode or PFM Mode for Light Loads; Over Current Protection, Thermal Shutdown, Over Voltage Protection, Under Voltage Protection and Short−circuit Protection; Enable Function with Adjustable Input Voltage Under−Volta
A good PCB layout for the FAN65004C should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour connectivity to dissipate heat. Avoid routing high-current traces under the device, and use thermal vias to connect the thermal pad to the heat sink.
Optimizing the compensation network involves selecting the right values for the compensation components (R1, R2, C1, and C2). Use the datasheet's recommended values as a starting point, and then adjust them based on your specific application's requirements. You can use simulation tools or empirical methods to fine-tune the compensation network for optimal stability and transient response.
The FAN65004C can tolerate a certain amount of input voltage ripple, but excessive ripple can affect its performance and stability. As a general guideline, keep the input voltage ripple below 10% of the nominal input voltage. For example, if the nominal input voltage is 12V, the ripple should be less than 1.2V (peak-to-peak).
To ensure the OCP is triggered correctly, make sure the sense resistor (Rs) is properly sized and connected. The sense resistor should be placed close to the device, and its value should be chosen based on the maximum allowed current and the device's OCP threshold. Also, ensure that the PCB layout does not introduce excessive voltage drops or noise that could interfere with the OCP circuitry.
The recommended input capacitor type is a low-ESR ceramic capacitor (X5R or X7R dielectric) with a value between 4.7μF and 10μF. The capacitor should be placed close to the device's input pins to minimize inductance and ensure good decoupling. Avoid using electrolytic capacitors, as they may not provide sufficient high-frequency decoupling.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN65004C Overview

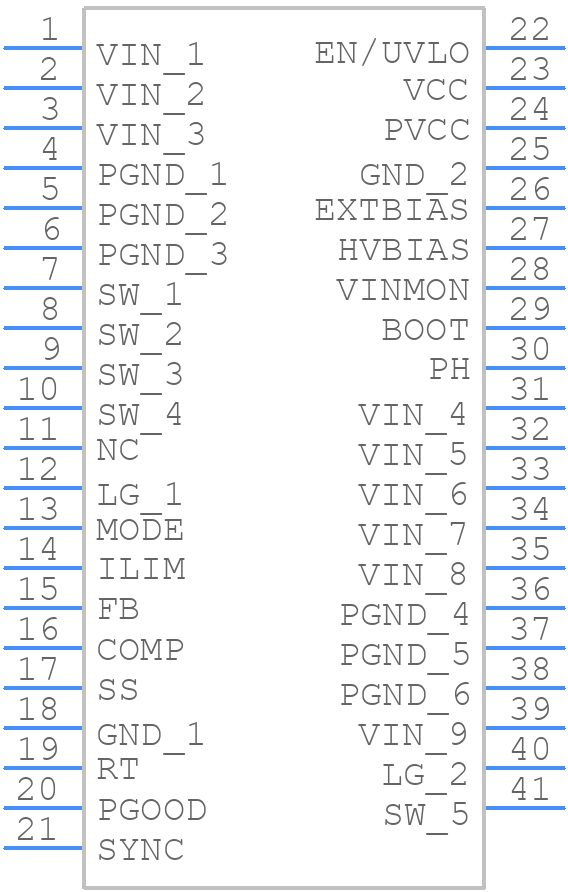

Use the download button to access the FAN65004C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN65,
or try a keyword search, such as Switching Regulator or Controllers
