Description:Wide Input Voltage Range: 4.5 V to 65 V; Switching Frequency: 100 kHz to 1 MHz; 0.6 V Reference Voltage with 0.67% Accuracy; Selectable CCM PWM Mode or PFM Mode for Light Loads; Over Current Protection, Thermal Shutdown, Over Voltage Protection, Under Voltage Protection and Short−circuit Protection; Dual LDOs for Single Supply Operation and to Reduce Power Loss; External Compensation for Wide Operation Range; Adjustable Soft−Start & Pre−Bias Startup; Enable Function with Adjustable Input Voltage Under−Volta
A good PCB layout for optimal thermal performance involves placing the FAN65005A near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Additionally, keeping the thermal vias small and numerous can help to dissipate heat more efficiently.
To ensure the FAN65005A is properly configured for your specific application, carefully review the datasheet and application notes. Pay attention to the recommended operating conditions, pin configurations, and external component values. You may also want to consult with onsemi's technical support team or a qualified engineer with experience in power management ICs.
When selecting external components for the FAN65005A, consider the operating frequency, output voltage, and current requirements of your application. Choose components with suitable voltage and current ratings, and ensure they meet the recommended values specified in the datasheet. Additionally, consider the component's power dissipation, ESR, and ESL to ensure optimal performance and stability.
To troubleshoot common issues with the FAN65005A, start by reviewing the datasheet and application notes to ensure proper configuration and component selection. Check for proper PCB layout, decoupling, and filtering. Use an oscilloscope to monitor the output voltage and current, and look for signs of oscillation or instability. Consult with onsemi's technical support team or a qualified engineer for further assistance if needed.
The FAN65005A has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, keep the device within the recommended operating temperature range. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Monitor the device's temperature and adjust the thermal management strategy as needed to prevent overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN65005A Overview

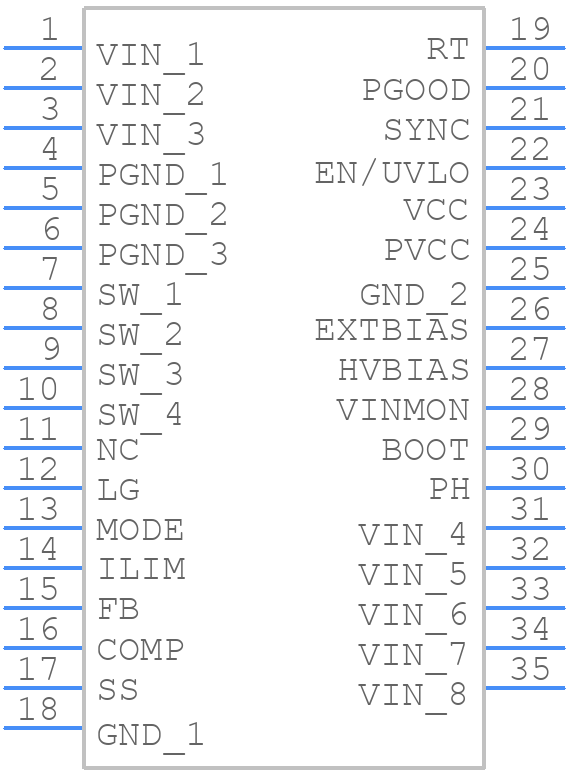

Use the download button to access the FAN65005A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN65,
or try a keyword search, such as Switching Regulator or Controllers
