A good PCB layout for the FAN6921MRMY involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the FAN6921MRMY operates within its SOA, use a soft-start circuit to limit the inrush current during startup, and add a shutdown circuit to slowly discharge the output capacitors during shutdown. Monitor the input voltage, output voltage, and current to prevent overvoltage, undervoltage, and overcurrent conditions.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be rated for the maximum input voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.
To optimize the output filter design, use a combination of capacitors and inductors to filter out the switching frequency and its harmonics. A pi-filter (L-C-L) or a T-filter (L-C-R-C) topology can be used, with the values of the components selected based on the output voltage, current, and desired ripple and noise levels.
A good thermal management strategy for the FAN6921MRMY involves using a heat sink with a thermal resistance of less than 10°C/W, applying a thermal interface material (TIM) to the heat sink, and ensuring good airflow around the device. The PCB should also be designed to dissipate heat efficiently.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN6921MRMY Overview

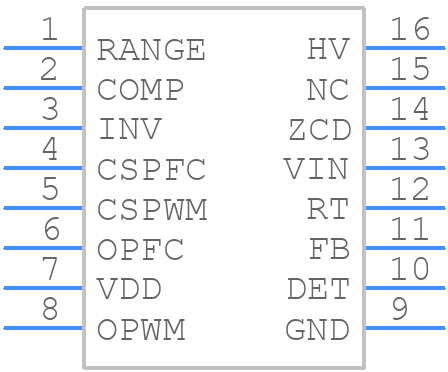

Use the download button to access the FAN6921MRMY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN69,
or try a keyword search, such as Switching Regulator or Controllers
