Part Image

FAN6982MY - onsemi

Description: TriFault Detect™ Prevent Abnormal Operation for Feedback Loop ; Soft-Start Capability ; Fulfills Class-D Requirements of IEC 1000-3-2 ; Innovative Switching-Charge Multiplier-Divider ; Power-On Sequence Control ; Improves Light-Load Efficiency ; Continuous Conduction Mode ; Wide Range Universal AC Input Voltage ; Cycle-by-Cycle Peak Current Limiting ; Average-Current-Mode for Input-Current Shaping ; Brownout Protection ; Maximum Duty Cycle 97% ; VDD Under-Voltage Lockout (UVLO)

Download FAN6982MY Model

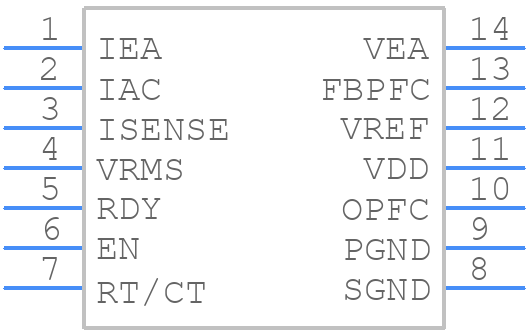

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN6982MY - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 14-PIN SOP
click to zoom
3D Models
FAN6982MY - onsemi  - 3D model - Small Outline Packages - 14-PIN SOP
click to zoom

FAN6982MY Details

  • Manufacturer Part Number:

    FAN6982MY

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-14

  • Package Description:

    SOIC-14

  • Manufacturer Package Code:

    751EF

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    22 V

  • Input Voltage-Min:

    11 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.625 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    75 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

FAN6982MY Frequently Asked Questions (FAQs)

  • A good PCB layout for the FAN6982MY involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. It's also recommended to use a shielded inductor and to keep the switching node (SW pin) away from sensitive analog circuits.
  • The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet (e.g., 2.2 μH for the FAN6982MY). Then, adjust the value based on the specific requirements of your application, such as the desired ripple current and output voltage ripple.
  • The FAN6982MY is rated for operation from -40°C to 125°C (TJ) and -40°C to 85°C (TA) ambient temperature range. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to consider the specific requirements of your application.
  • To ensure stability, follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, make sure to decouple the input and output pins properly, and use a sufficient output capacitor value to filter out the switching noise. If oscillations occur, try adding a small capacitor (e.g., 10 nF) between the VIN and GND pins.
  • Yes, the FAN6982MY is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive systems. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the specific requirements of your application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FAN6982MY Overview

Use the download button to access the FAN6982MY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN69, or try a keyword search, such as Switching Regulator or Controllers
