FAN73611MX - onsemi

Description: Common-Mode dv/dt Noise-Canceling Circuit; Floating Channel for Bootstrap Operation to +600V; Under-Voltage Lockout for VDD and VBS; 8-Lead Small Outline Package (SOP); 3.3V and 5V Input Logic Compatible; 250mA/500mA Sourcing/Sinking Current Driving Capability; Output In Phase with Input Signal

Download FAN73611MX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

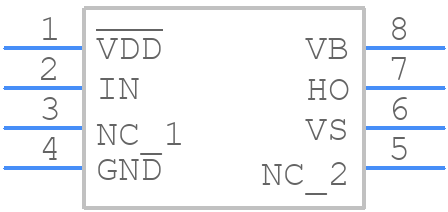

FAN73611MX - onsemi - PCB symbol
click to zoom
PCB Footprints
FAN73611MX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8-ren1
click to zoom
3D Models
FAN73611MX - onsemi - 3D model - Small Outline Packages - SOIC8-ren1
click to zoom

FAN73611MX Details

  • Manufacturer Part Number:

    FAN73611MX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOP-8

  • Manufacturer Package Code:

    751EG

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    55 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • High Side Driver:

    NO

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    0.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.16 mA

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    620 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.17 µs

  • Turn-on Time:

    0.17 µs

  • Width:

    3.9 mm
