FAN7362MX - onsemi

Description: Floating Channel Designed for Bootstrap Operation to +600V; UVLO Function; Common-Mode dv/dt Noise Canceling Circuit; 8-SOP; VCC & VBS Supply Range from 10V to 20V; Output In-phase with Input; Typically 250mA/500mA Sourcing/Sinking Current Driving Capability

Download FAN7362MX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

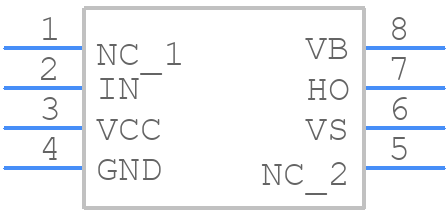

FAN7362MX - onsemi - PCB symbol
click to zoom
PCB Footprints
FAN7362MX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead, Small Outline Package (SOP-8)
click to zoom

FAN7362MX Details

  • Manufacturer Part Number:

    FAN7362MX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751EG

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    45 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.18 µs

  • Turn-on Time:

    0.2 µs

  • Width:

    3.9 mm

FAN7362MX Frequently Asked Questions (FAQs)

  • A good PCB layout for the FAN7362MX involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. It's also recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog circuits.
  • The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet (e.g., 10uH). Then, adjust the value based on the specific application requirements, such as output current and ripple voltage.
  • The maximum ambient temperature for the FAN7362MX is 85°C. However, the IC can operate up to 125°C junction temperature. It's essential to ensure proper thermal design and heat dissipation to prevent overheating.
  • Yes, the FAN7362MX can be used in a synchronous rectification configuration. This can improve efficiency by reducing the voltage drop across the rectifier diodes. However, it requires careful design and layout to ensure proper operation and minimize EMI.
  • To troubleshoot issues with the FAN7362MX, start by checking the PCB layout, component values, and soldering quality. Verify that the input and output capacitors are properly connected and that the inductor is correctly selected. Use an oscilloscope to measure the switching node (SW) and output voltage waveforms to identify any anomalies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FAN7362MX Overview

Use the download button to access the FAN7362MX schematic symbol and PCB footprint.
