FAN7387MX - onsemi

Description: Dead Time Control Using Resistor ; Internal Clock Using RCT ; UVLO Function, High and Low Side; Internal Shunt Regulator ; Shut Down (Disable Mode) ; External Sync Function Using RCT

Download FAN7387MX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

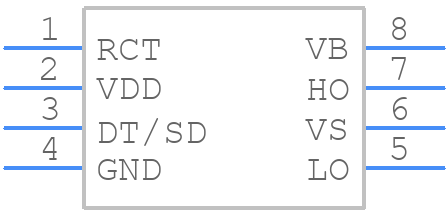

FAN7387MX - onsemi - PCB symbol
click to zoom
PCB Footprints
FAN7387MX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8 CASE 751EG ISSUE O
click to zoom
3D Models
FAN7387MX - onsemi - 3D model - Small Outline Packages - SOIC8 CASE 751EG ISSUE O
click to zoom

FAN7387MX Details

  • Manufacturer Part Number:

    FAN7387MX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751EG

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.65 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    11 V

  • Supply Voltage-Nom:

    14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.07 µs

  • Turn-on Time:

    0.55 µs

  • Width:

    3.9 mm

FAN7387MX Frequently Asked Questions (FAQs)

  • A good PCB layout for the FAN7387MX involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the output capacitor is properly sized and placed close to the IC. Also, ensure that the input capacitor is properly sized and placed close to the input voltage source. Additionally, use a low-ESR output capacitor and a high-quality input capacitor to minimize oscillations.
  • The FAN7387MX can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and reliability.
  • The FAN7387MX is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliability. Consult the datasheet for thermal derating curves.
  • The output voltage of the FAN7387MX is determined by the resistive divider network connected to the FB pin. Use the formula: Vout = (R1 / R2) * (Vref - Vfb), where R1 and R2 are the resistors in the divider network, Vref is the internal reference voltage, and Vfb is the feedback voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FAN7387MX Overview

Use the download button to access the FAN7387MX schematic symbol, PCB footprint, and 3D model.
