Description:Built-in Advanced Input Filter; Outputs Out of Phase with Input Signals; Typically 350 mA/650 mA Sourcing/Sinking Current-Driving Capability for All Channels; Floating Channel for Bootstrap Operation to +600 V; Adjustable Fault-Clear Timing; Extended Allowable Negative VS Swing to -9.8 V for Signal Propagation at VDD=VBS=15 V; Common-Mode dVs/dt Noise-Canceling Circuit; 3.3 V and 5.0 V Input Logic Compatible; Built-in Soft Turn-Off Function; Matched Propagation Delay for All Channels; Over-Current Shutdown
A good PCB layout for FAN73894MX involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
Proper thermal management of FAN73894MX involves providing a heat sink with a thermal resistance of less than 10°C/W, ensuring good airflow around the device, and keeping the ambient temperature below 85°C. The device's thermal pad should be soldered to a copper plane on the PCB for optimal heat dissipation.
The maximum allowed voltage on the input pins of FAN73894MX is 6V, which is the absolute maximum rating. However, it is recommended to keep the input voltage below 5.5V to ensure reliable operation and to prevent damage to the device.
Yes, FAN73894MX is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a process that is compliant with IATF 16949. However, it is essential to follow the recommended operating conditions and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
To troubleshoot issues with FAN73894MX, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for output voltage ripple or oscillations. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN73894MX Overview

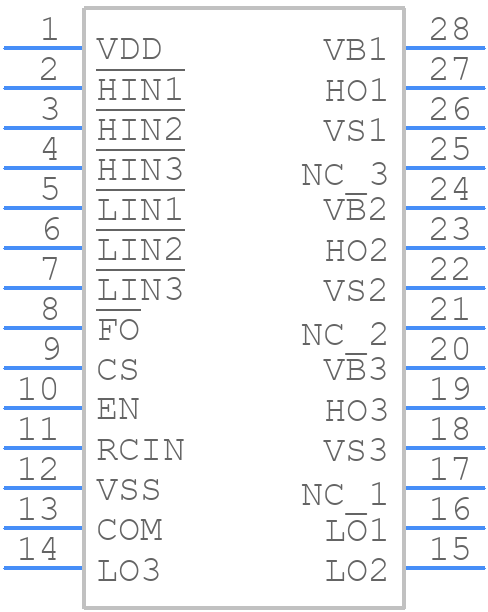

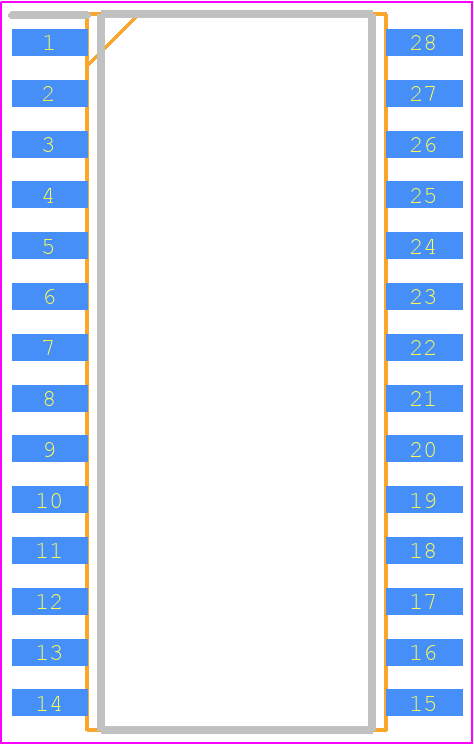

Use the download button to access the FAN73894MX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN73,
or try a keyword search, such as Peripheral Drivers
