A good PCB layout for the FAN7389MX1 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. It's also recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog circuits.
The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet. Additionally, consider the inductor's saturation current, DC resistance, and core material to ensure it can handle the required current and minimize losses.
The FAN7389MX1 is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.
To ensure stability, follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors are of high quality and have low ESR, and that the inductor is properly selected. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the VIN and GND pins.
Yes, the FAN7389MX1 can be used in a synchronous rectification configuration. However, this requires additional external components and careful design to ensure proper operation. Consult the datasheet and application notes for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN7389MX1 Overview

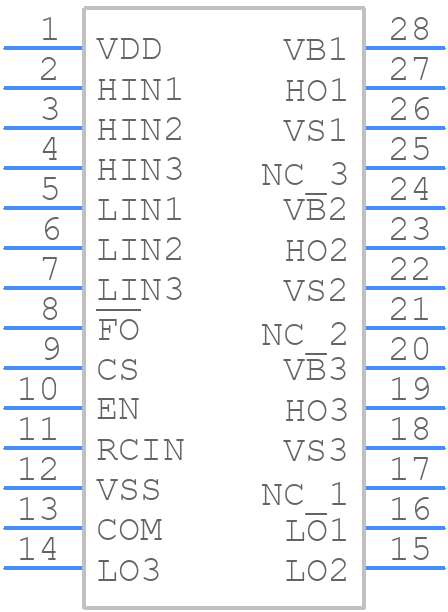

Use the download button to access the FAN7389MX1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN73,
or try a keyword search, such as MOSFET Drivers
