FAN7390AMX1 - onsemi

Description: Output In-phase with Input; 3.3 V and 5 V Input Logic Compatible; Common-Mode dv/dt Noise-Canceling Circuit; Built-in Under-Voltage Lockout for Both Channels; Logic (VSS) and Power (COM) Ground +/- 5 V Offset; Floating Channels for Bootstrap Operation to +600 V; Matched Propagation Delay for Both Channels; Typically 4.5 A / 4.5 A Sourcing / Sinking Current Driving Capability

Download FAN7390AMX1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

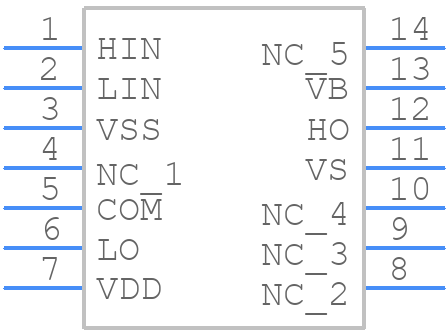

FAN7390AMX1 - onsemi - PCB symbol
click to zoom
PCB Footprints
FAN7390AMX1 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC14 CASE 751EF ISSUE O
click to zoom
3D Models
FAN7390AMX1 - onsemi - 3D model - Small Outline Packages - SOIC14 CASE 751EF ISSUE O
click to zoom

FAN7390AMX1 Details

  • Manufacturer Part Number:

    FAN7390AMX1

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-14

  • Manufacturer Package Code:

    751EF

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    57 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.625 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.64 mA

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.2 µs

  • Turn-on Time:

    0.2 µs

  • Width:

    3.9 mm

FAN7390AMX1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the FAN7390AMX1 involves keeping the input and output stages separate, using a star-ground configuration, and placing the device close to the load. Additionally, using a 4-layer PCB with a solid ground plane and a separate power plane can help reduce EMI.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum of 1uF input capacitance and 2.2uF output capacitance is recommended.
  • The FAN7390AMX1 is rated for operation from -40°C to 150°C ambient temperature range. However, the device's junction temperature should not exceed 150°C.
  • Yes, the FAN7390AMX1 is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
  • To protect the FAN7390AMX1 from overvoltage and undervoltage conditions, use a voltage supervisor or a voltage monitor IC to detect and respond to abnormal voltage conditions. Additionally, consider using a TVS diode or a zener diode to clamp the input voltage.
