FAN7391MX - onsemi

Description: Logic(VSS) and Power (COM) Ground ±5V Offset; Built-in Under-Voltage Lockout for Both Channels; Common-Mode dv/dt Noise-Cancelling Circuit; Matched Propagation Delay for Both Channels; Built-in Advanced Input Filter; Output In-Phase with Input; 3.3V and 5V Input Logic Compatible; Floating Channel for Bootstrap Operation to +600V ; Typically 4.5A/4.5A Sourcing/Sinking Current Driving Capability

Download FAN7391MX Model
Schematic
symbols

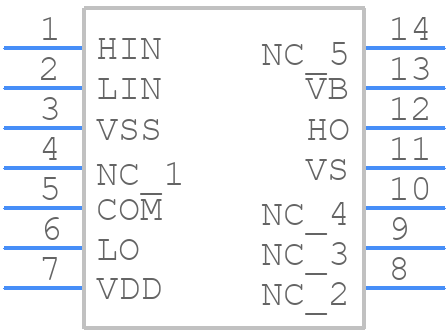

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN7391MX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - sop14
click to zoom
3D Models
FAN7391MX - onsemi  - 3D model - Small Outline Packages - sop14
click to zoom

FAN7391MX Details

  • Manufacturer Part Number:

    FAN7391MX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14

  • Package Description:

    SOP-14

  • Manufacturer Package Code:

    751EF

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.38

  • Built-in Protections:

    TRANSIENT; UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.625 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.045 µs

  • Turn-on Time:

    0.05 µs

  • Width:

    3.9 mm

FAN7391MX Frequently Asked Questions (FAQs)

  • A good PCB layout for the FAN7391MX involves keeping the high-frequency switching nodes (e.g., SW node) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and loops. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF ceramic capacitor is recommended at the VIN pin to filter out high-frequency noise.
  • The FAN7391MX is rated for operation from -40°C to 150°C (TJ) and -40°C to 125°C (TA) ambient temperature range. However, the device's performance and reliability may degrade at higher temperatures, so it's essential to ensure proper thermal management and heat sinking.
  • Yes, the FAN7391MX can be used in a synchronous rectification topology. However, it's essential to ensure that the synchronous rectifier MOSFET is properly selected and driven to minimize losses and ensure efficient operation.
  • The minimum input capacitance required for the FAN7391MX can be calculated using the formula: CIN ≥ (IOUT x ΔVIN) / (fSW x ΔVripple), where IOUT is the output current, ΔVIN is the input voltage ripple, fSW is the switching frequency, and ΔVripple is the desired output voltage ripple.
