Description:Totem Pole Output with High State Clamp ; 150µs Internal Start-up Timer ; 8-Pin DIP or 8-Pin SOP; Low Start-up (40µA) and Operating Current (1.5mA) ; MOSFET Over-Current Protection ; +500/-800mA Peak Gate Drive Current ; Under-Voltage Lockout with 3.5V Hysteresis ; Zero Current Detector ; Open-Feedback Protection and Disable Function ; Precise Adjustable Output Over-Voltage Protection ; Low Total Harmonic Distortion (THD)
A good PCB layout for the FAN7529MX involves keeping the high-frequency switching nodes (e.g., LX pins) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas in the power stage. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To optimize the compensation network, start with the recommended values in the datasheet and then adjust RCOMP and CCOMP based on the desired transient response and stability margin. A good starting point is to set RCOMP to 10kΩ and CCOMP to 10nF, and then adjust from there.
The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage divider or a level shifter to ensure the EN pin voltage remains within the specified range.
Yes, the FAN7529MX can be used in a synchronous rectification topology. However, it's essential to ensure that the synchronous rectifier is properly synchronized with the FAN7529MX's switching frequency and that the rectifier's voltage rating is sufficient for the application.
To ensure the FAN7529MX operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Use thermal design and layout techniques to minimize thermal resistance, and ensure the device is operated within the recommended voltage and current ranges.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN7529MX Overview

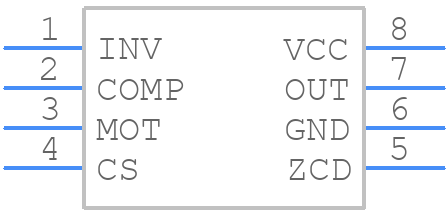

Use the download button to access the FAN7529MX schematic symbol and PCB footprint.
