Description:External Compensation; Overload / Short-Circuit Protection; 100% Duty Cycle; Thermal Shutdown; 2.5V to 5.5V Input Voltage Range; Less than 1µA Shutdown Current; Stable with Ceramic Capacitors; External Soft-Start; Under-Voltage Lockout; External Synchronization from 500kHz to 2MHz; Output Voltage as Low as 1.2V; Light Load Mode with Pulse Skipping; Over 96% Efficient; Current Mode Control; Synchronous Switching FET; no Schottky Diode Required; 10-Lead 3x3mm Green MLP Package; 1.2MHz Operating Frequency
ALSO OPERATES IN ADJUSTABLE MODE FROM 1.2V TO 5.5V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
S-PDSO-N10
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1 A
Output Voltage-Min:
1.2 V
Output Voltage-Nom:
2.5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC10,.12,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1350 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
FAN8060EMPX Frequently Asked Questions (FAQs)
A good PCB layout for the FAN8060EMPX should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure a low-thermal-resistance path to the PCB's ground plane. Use multiple vias to connect the thermal pad to the ground plane, and keep the thermal pad as large as possible.
The input capacitor should be selected based on the input voltage ripple, output voltage, and output current requirements. A general guideline is to use a capacitor with a capacitance value of 10uF to 22uF, and a voltage rating of 25V to 50V. X5R or X7R ceramic capacitors are suitable for this application.
The maximum output current of the FAN8060EMPX is 6A. However, the actual output current may be limited by the thermal performance of the device and the PCB layout. It's essential to ensure the device operates within its thermal limits to prevent overheating and ensure reliability.
The FAN8060EMPX is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to ensure the device operates within its specified temperature range and to implement adequate thermal management to prevent overheating.
The FAN8060EMPX has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output pin and the GND pin. The device will limit the output current to a maximum value based on the sense resistor value. A typical sense resistor value is 0.1 ohms to 1 ohm.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN8060EMPX Overview

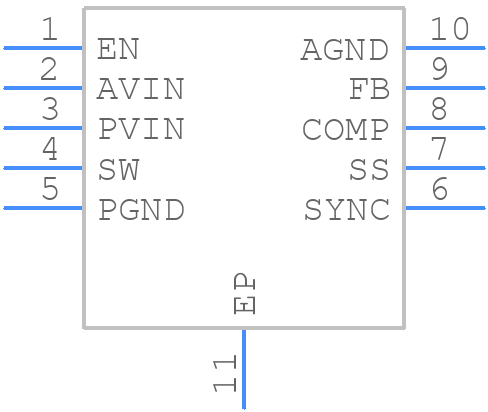

Use the download button to access the FAN8060EMPX schematic symbol, PCB footprint, and 3D model.
