FAN8811MNTXG - onsemi

Description: Fast Propagation Delay Times (Typ. 30 ns); 3 A Source, 6 A Sink Output Current Capability; TTL Compatible Input Thresholds; Drives 1nF Load with Typical Rise/Fall Times of 6 ns/4 ns; Wide Supply Voltage Range 7.5 V to 16 V (Absolute Maximum 18 V); 2 ns Delay Matching (Typical); Integrated Bootstrap Diode for High Side Gate Drive; Drives two N-Channel MOSFETs in High & Low Side; Under-Voltage Lockout (UVLO) Protection for Drive Voltage; Operating Junction Temperature Range of -40°C to 125°C; Bootstrap Supply

Download FAN8811MNTXG Model

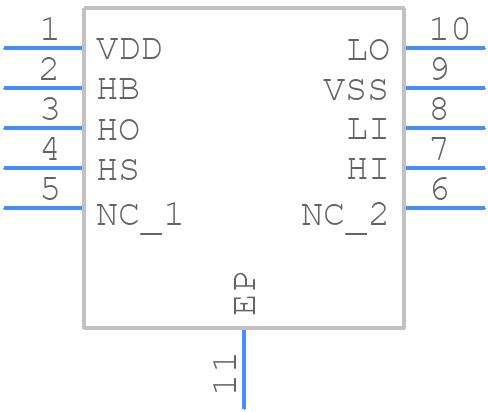

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN8811MNTXG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN10 4x4, 0.8P CASE 511DU ISSUE O
click to zoom
3D Models
FAN8811MNTXG - onsemi  - 3D model - Small Outline No-lead - WDFN10 4x4, 0.8P CASE 511DU ISSUE O
click to zoom

FAN8811MNTXG Details

  • Manufacturer Part Number:

    FAN8811MNTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    WDFN-10

  • Package Description:

    WDFN-10

  • Manufacturer Package Code:

    511DU

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-04-29

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    SEATED HT-CALCULATED

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-XDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.78 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Max:

    16 V

  • Supply Voltage-Min:

    7.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    96 V

  • Supply Voltage1-Min:

    6.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.043 µs

  • Turn-on Time:

    0.045 µs

  • Width:

    4 mm
