FAN8811TMPX - onsemi

Description: Fast Propagation Delay Times (Typ. 30 ns); 3 A Source, 6 A Sink Output Current Capability; TTL Compatible Input Thresholds; Drives 1nF Load with Typical Rise/Fall Times of 6 ns/4 ns; Wide Supply Voltage Range 7.5 V to 16 V (Absolute Maximum 18 V); 2 ns Delay Matching (Typical); Integrated Bootstrap Diode for High Side Gate Drive; Drives two N-Channel MOSFETs in High & Low Side; Under-Voltage Lockout (UVLO) Protection for Drive Voltage; Operating Junction Temperature Range of -40°C to 125°C; Bootstrap Supply

Download FAN8811TMPX Model

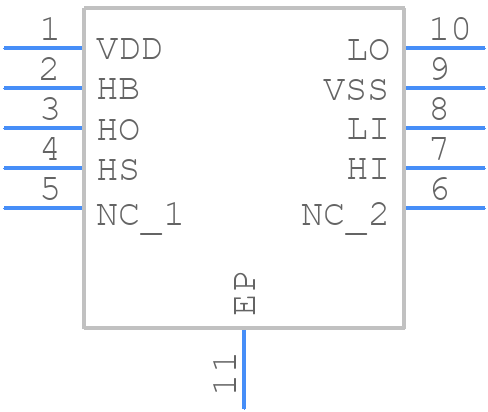

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN8811TMPX - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - FAN8811TMPX
click to zoom
3D Models
FAN8811TMPX - onsemi  - 3D model - Small Outline No-lead - FAN8811TMPX
click to zoom

FAN8811TMPX Details

  • Manufacturer Part Number:

    FAN8811TMPX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-10

  • Package Description:

    WDFN-10

  • Manufacturer Package Code:

    511DU

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    SEATED HT-CALCULATED

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-XDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.78 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Max:

    16 V

  • Supply Voltage-Min:

    7.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    96 V

  • Supply Voltage1-Min:

    6.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.043 µs

  • Turn-on Time:

    0.045 µs

  • Width:

    4 mm

FAN8811TMPX Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a solid ground plane, and minimizing the distance between the device and the thermal pad or heat sink. Additionally, using a thermal via array can help to dissipate heat more efficiently.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the device. Additionally, using a low-ESR capacitor and minimizing the inductance of the output traces can help to improve stability.
  • The maximum input voltage that FAN8811TMPX can handle is 28V. Exceeding this voltage can cause damage to the device.
  • The power dissipation of FAN8811TMPX can be calculated using the formula: Pd = (Vin - Vout) x Iout. Where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
  • The recommended input capacitor value for FAN8811TMPX is 1uF to 10uF, with a voltage rating of at least 30V. A larger input capacitor can help to improve the input voltage ripple rejection.
