- Part Number FARM1C21
- Manufacturer VICOR
- Pin Count 9
- Part Category Power Supply
- Package Category Other

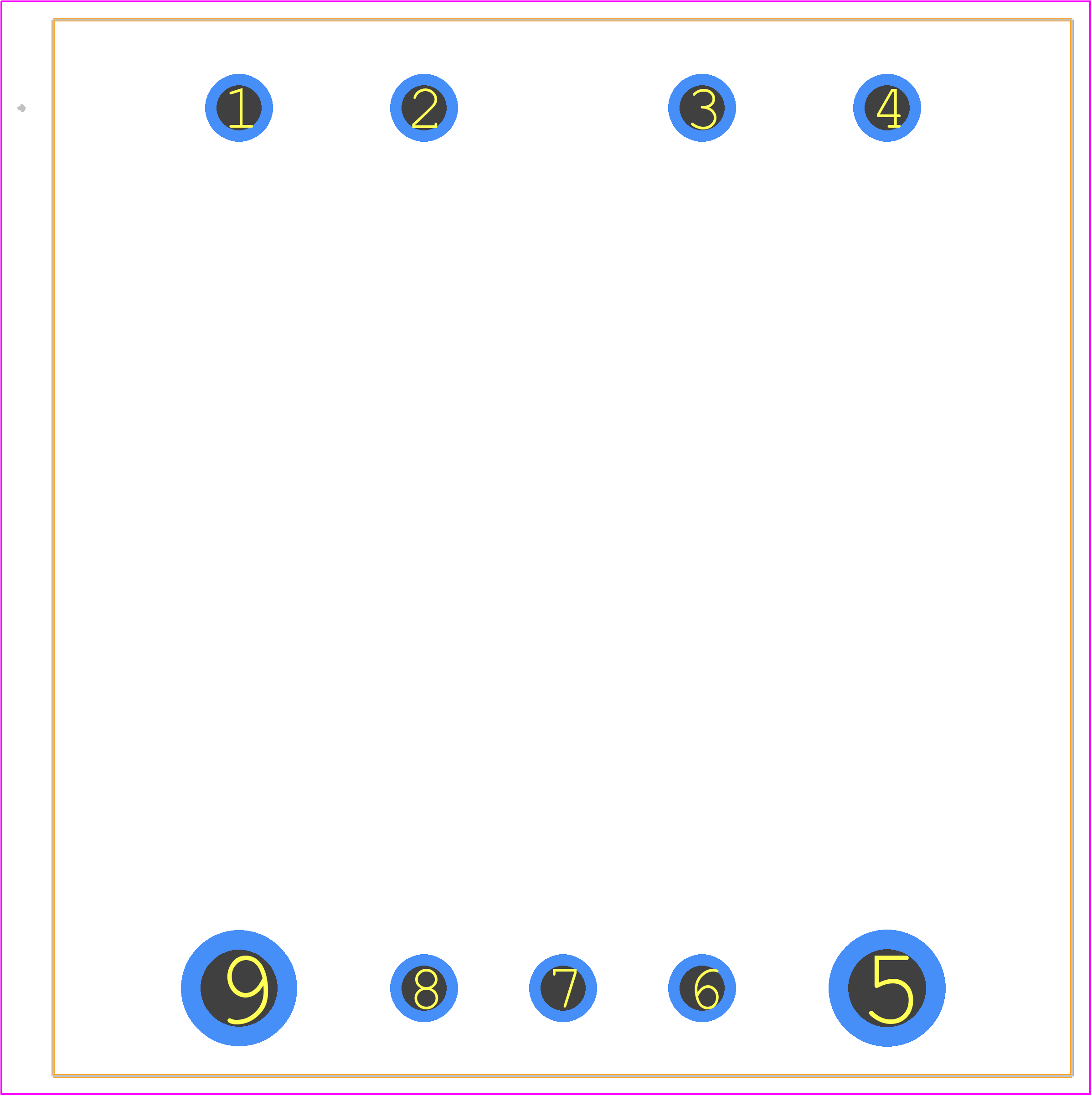

- Footprint Name Other - FARM1C21-1
- Released Date Aug 20, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
FARM1C21 Details
-
Manufacturer Part Number:
FARM1C21
-
Pbfree Code:
No
-
Part Life Cycle Code:
Active
-
Part Package Code:
MODULE
-
Package Description:
PACKAGE-9
-
Pin Count:
9
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Vicor Corporation
-
YTEOL:
6.38
FARM1C21 Frequently Asked Questions (FAQs)
-
Vicor recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to ensure good thermal conductivity. A minimum of 2 oz copper thickness is recommended.
-
To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current, and a minimum input capacitance of 10uF to ensure stable operation.
-
The maximum allowed input voltage ripple for the FARM1C21 is 10% of the nominal input voltage. Exceeding this limit may affect the module's reliability and performance.
-
The FARM1C21 is rated for operation up to 100°C ambient temperature. However, Vicor recommends derating the output power by 1% per degree Celsius above 80°C to ensure reliable operation.
-
The FARM1C21 has a built-in voltage sense pin (VSENSE) that can be connected to a voltage monitoring circuit or a microcontroller to monitor the output voltage.
Trust Checks
Expert Contribution
System Verified
Community Approved
FARM1C21 Overview

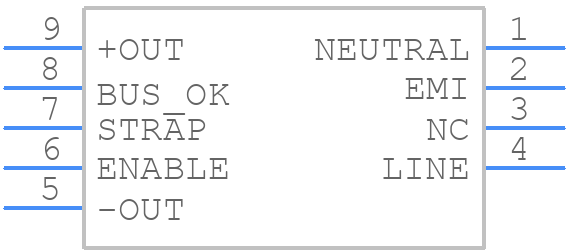

Use the download button to access the FARM1C21 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FARM1,
or try a keyword search, such as Other Signal Circuits
