FB37M6P0106KC - Kyocera AVX

Description: 10 µF Film Capacitor 1200V (1.2kV) Polypropylene (PP), Metallized Radial

Download FB37M6P0106KC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FB37M6P0106KC - Kyocera AVX - PCB symbol
click to zoom

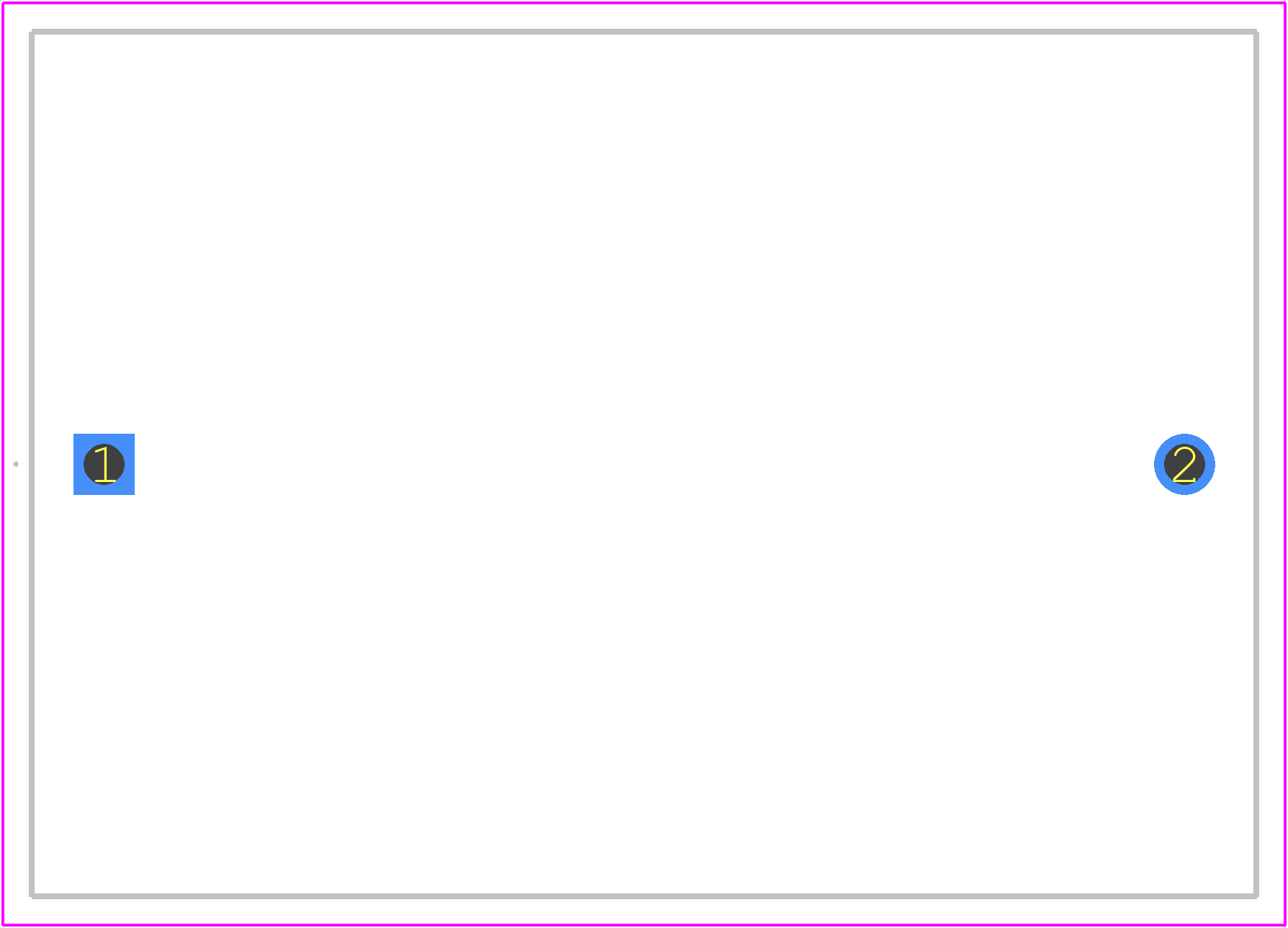

PCB Footprints
FB37M6P0106KC - Kyocera AVX PCB footprint - Other - Other - FB37M6P0106KC-6
click to zoom
3D Models
FB37M6P0106KC - Kyocera AVX - 3D model - Other - FB37M6P0106KC-6
click to zoom

FB37M6P0106KC Details

  • Manufacturer Part Number:

    FB37M6P0106KC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.80

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Capacitance:

    10 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    45 mm

  • Length:

    42.5 mm

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    1200 V

  • Terminal Pitch:

    37.5 mm

  • Width:

    30 mm

FB37M6P0106KC Frequently Asked Questions (FAQs)

  • The recommended land pattern for FB37M6P0106KC is a rectangular pad with a size of 3.2mm x 1.6mm, with a non-solder mask defined (NSMD) pad shape.
  • FB37M6P0106KC is a moisture-sensitive device. It is recommended to store it in a dry environment (less than 30% RH) and to bake the components at 125°C for 24 hours before reflow soldering.
  • The maximum reflow temperature for FB37M6P0106KC is 260°C, with a peak temperature of 250°C for a maximum of 10 seconds.
  • Yes, FB37M6P0106KC is designed to withstand high-vibration environments. However, it is recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and soldering to prevent component detachment.
  • To ensure the reliability of FB37M6P0106KC in high-temperature applications, it is recommended to follow the manufacturer's guidelines for temperature derating, and to ensure proper thermal management and heat dissipation in the system design.
