FBS-GAM01P-R-PSE - EPC Space LLC

Description: Low-Side Gate Driver IC Non-Inverting 4.5V ~ 5.5V Surface Mount 9-SMD Module -55°C ~ 130°C (TJ)

Download FBS-GAM01P-R-PSE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this FBS-GAM01P-R-PSE model

Email notifications will be applied after download.

Send part feedback

Symbol

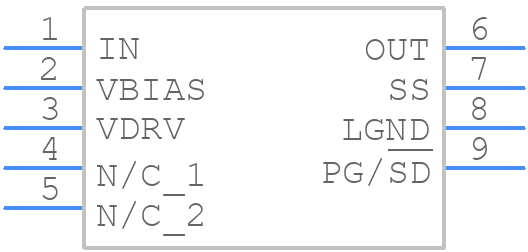

FBS-GAM01P-R-PSE - EPC Space LLC - PCB symbol

PCB Footprints

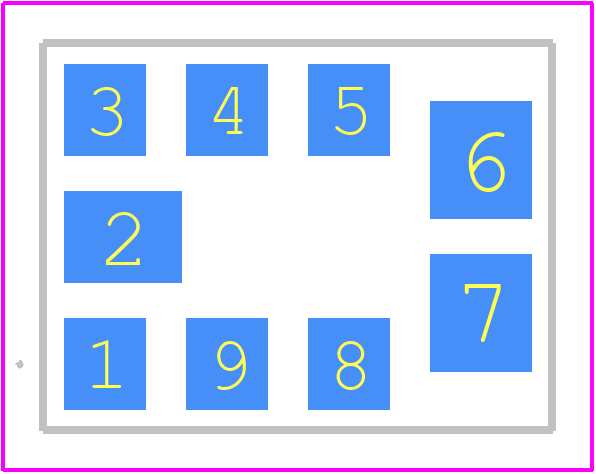

FBS-GAM01P-R-PSE - EPC Space LLC PCB footprint - Other - Other - 9-SMD_2026-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for FBS-GAM01P-R-PSE
Part Number FBS-GAM01P-R-PSE
Manufacturer EPC Space LLC
Pin Count 9
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 9-SMD_2026-1
Released Date Aug 25, 2026
Last Modified Date Aug 25, 2026 12:16 PM UTC
Pinout / Pin List Click Here (Member Only)

FBS-GAM01P-R-PSE Details

Manufacturer Part Number:
FBS-GAM01P-R-PSE
Manufacturer:
EPC Space LLC

Trust Checks

Expert Contribution

System Verified

Community Approved

FBS-GAM01P-R-PSE Overview

Use the download button to access the FBS-GAM01P-R-PSE schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FBS-G, or try a keyword search, such as MOSFET Drivers
