FC681374V - CLIFF ELECTRONIC COMPONENTS

Description: Connector: Jack 3,5mm; socket; female; stereo; ways: 3; straight

Download FC681374V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FC681374V - CLIFF ELECTRONIC COMPONENTS - PCB symbol
click to zoom
PCB Footprints

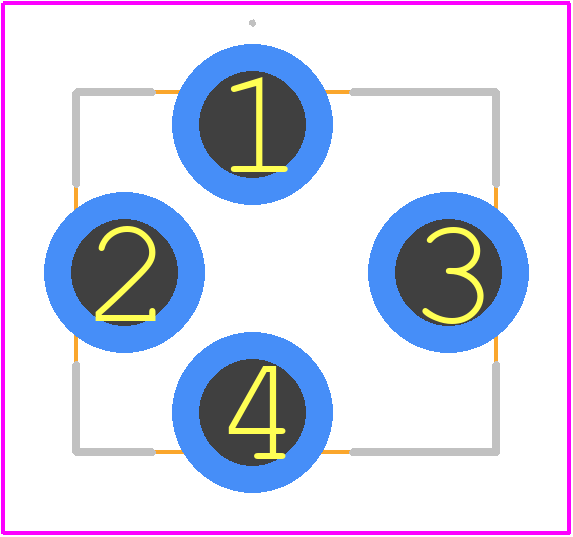

FC681374V - CLIFF ELECTRONIC COMPONENTS PCB footprint - Other - Other - FC681374V-1
click to zoom
3D Models
FC681374V - CLIFF ELECTRONIC COMPONENTS - 3D model - Other - FC681374V-1
click to zoom

FC681374V Details

  • Manufacturer Part Number:

    FC681374V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Cliff Electronic Components

  • YTEOL:

    5

  • Audio Type:

    STEREO

  • Body Breadth:

    0.354 inch

  • Body Depth:

    0.709 inch

  • Body Length:

    0.143 inch

  • Body/Shell Style:

    JACK

  • Configuration:

    1X1 HORIZONTAL

  • Connector Type:

    3.5MM AUDIO

  • Contact Gender:

    FEMALE

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Insulation Resistance:

    100000000 Ω

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Poles:

    3

  • Number of Ports:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Length:

    0.157 inch

  • Termination Type:

    SOLDER

FC681374V Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
  • Yes, the FC681374V is designed to withstand vibrations up to 10g (10-2000 Hz) and is suitable for use in high-vibration environments.
  • Yes, the FC681374V is rated for operation in temperatures ranging from -40°C to +125°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended derating guidelines for extreme environmental conditions.
  • The maximum current rating for the FC681374V is 3A per contact, but this may vary depending on the specific application and environmental conditions. It's recommended to consult with Cliff Electronic Components or a qualified engineer for specific guidance.
  • Yes, the FC681374V is designed for automated assembly and can be used with standard pick-and-place machines and reflow soldering processes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FC681374V Overview

Use the download button to access the FC681374V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FC681, or try a keyword search, such as Audio/RCA Connectors
