FC681465 - CLIFF ELECTRONIC COMPONENTS

Description: DC-10L dual skt 2.1/2.5mm,solder tag,5A Cliff Electronics 2.1 mm, 2.5 mm PCB Mount Dual DC Socket, 12 V dc, 5A

Download FC681465 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FC681465 - CLIFF ELECTRONIC COMPONENTS - PCB symbol
click to zoom
PCB Footprints

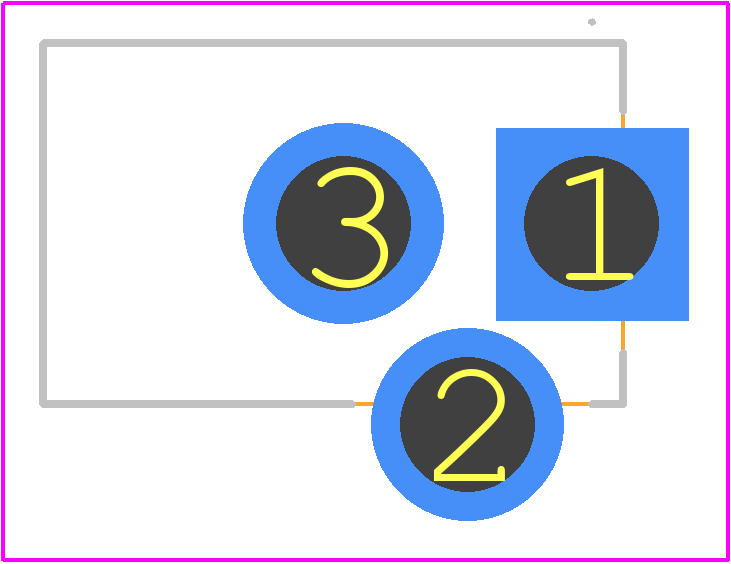

FC681465 - CLIFF ELECTRONIC COMPONENTS PCB footprint - Other - Other - FC681465-1
click to zoom
3D Models
FC681465 - CLIFF ELECTRONIC COMPONENTS - 3D model - Other - FC681465-1
click to zoom

FC681465 Details

  • Manufacturer Part Number:

    FC681465

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Cliff Electronic Components

  • YTEOL:

    6.25

  • Body Breadth:

    0.433 inch

  • Body Depth:

    0.571 inch

  • Body Length:

    0.354 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    DC POWER JACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

FC681465 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.0 Nm (5-10 in-lbs) to ensure a secure connection without damaging the threads.
  • Yes, the FC681465 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and screw torque to maintain the connection.
  • While the connector is designed for indoor use, it can be used outdoors if properly sealed and protected from environmental factors such as moisture, dust, and extreme temperatures.
  • The FC681465 is designed to accommodate cables with a maximum diameter of 5 mm (0.2 inches). Using larger cables may compromise the connection's reliability.
  • The FC681465 is rated for a maximum current of 5A per contact. Exceeding this rating may lead to overheating and connector damage. For high-current applications, consider using a connector with a higher current rating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FC681465 Overview

Use the download button to access the FC681465 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FC681, or try a keyword search, such as DC Power Plugs or Jacks
