FC68149 - CLIFF ELECTRONIC COMPONENTS

Description: DC-Power Socket 12A 5A 2,5mm Solder Eyel

Download FC68149 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FC68149 - CLIFF ELECTRONIC COMPONENTS - PCB symbol
click to zoom
PCB Footprints

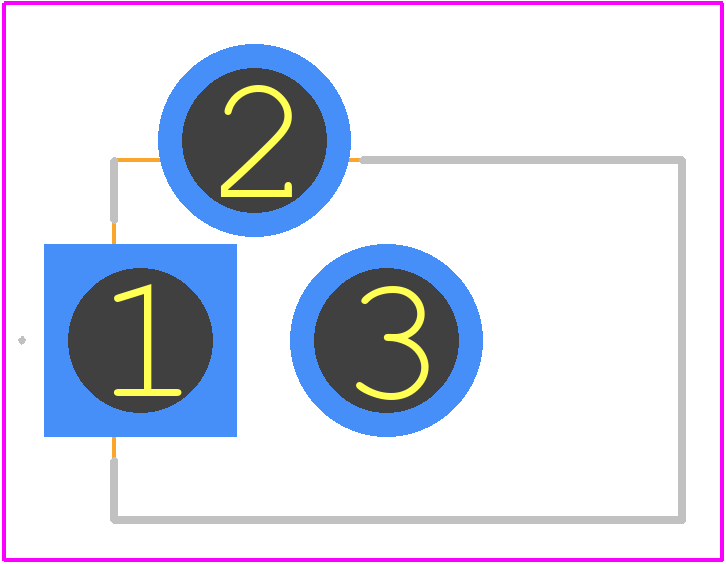

FC68149 - CLIFF ELECTRONIC COMPONENTS PCB footprint - Other - Other - FC68149-1
click to zoom
3D Models
FC68149 - CLIFF ELECTRONIC COMPONENTS - 3D model - Other - FC68149-1
click to zoom

FC68149 Details

  • Manufacturer Part Number:

    FC68149

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Cliff Electronic Components

  • YTEOL:

    6.25

  • Additional Feature:

    STANDARD: 94V-HB

  • Body Breadth:

    0.354 inch

  • Body Depth:

    0.559 inch

  • Body Length:

    0.433 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

FC68149 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
  • Yes, the FC68149 is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
  • Yes, the FC68149 is rated for operation in temperatures ranging from -40°C to +125°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended derating guidelines for high-temperature applications.
  • The maximum current rating for the FC68149 is 3A per contact, depending on the wire size and application.
  • Yes, the FC68149 is designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.
