FC681495 - CLIFF ELECTRONIC COMPONENTS

Description: Socket; DC supply; male; 5,5/2,5mm; 5.5mm; 2.5mm; shielded; 10A

Download FC681495 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FC681495 - CLIFF ELECTRONIC COMPONENTS - PCB symbol
click to zoom
PCB Footprints

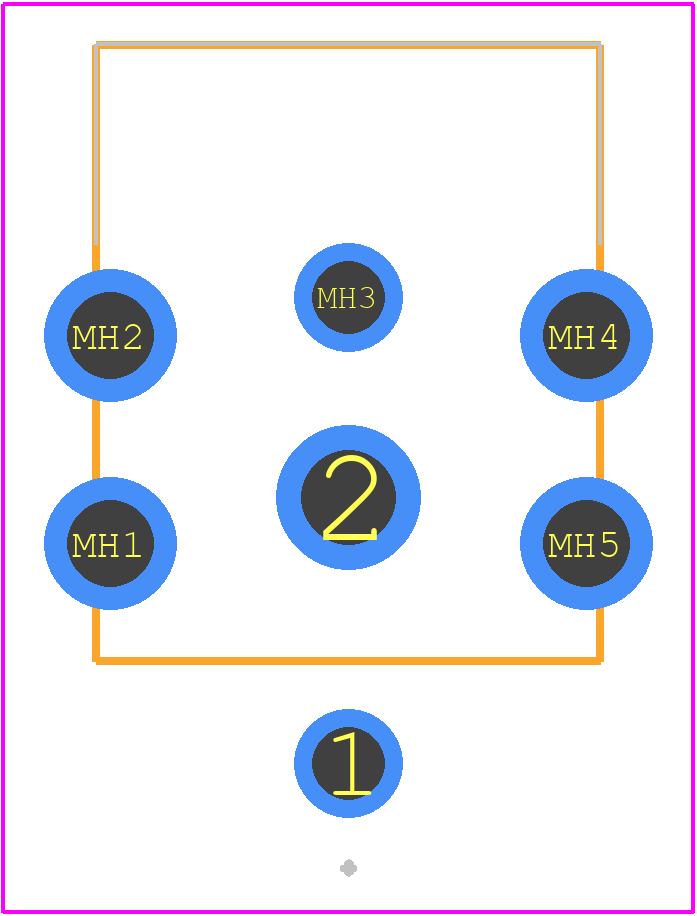

FC681495 - CLIFF ELECTRONIC COMPONENTS PCB footprint - Other - Other - FC681495-2
click to zoom
3D Models
FC681495 - CLIFF ELECTRONIC COMPONENTS - 3D model - Other - FC681495-2
click to zoom

FC681495 Details

  • Manufacturer Part Number:

    FC681495

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Cliff Electronic Components

  • YTEOL:

    6.25

  • Body Breadth:

    0.528 inch

  • Body Depth:

    0.74 inch

  • Body Length:

    0.496 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    DC POWER JACK

  • Insulator Material:

    POLYETHYLENE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    10 A

  • Rated Voltage:

    20 V

  • Termination Type:

    SOLDER

FC681495 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.0 Nm (4.4-8.8 lbf-in).
  • Yes, FC681495 is designed to withstand high-vibration environments. However, it's recommended to secure the connector properly to prevent damage.
  • Yes, FC681495 is designed for automated assembly processes, including wave soldering and reflow soldering.
  • The operating temperature range for FC681495 is -40°C to +105°C (-40°F to +221°F).
  • FC681495 is not designed for use in humid or wet environments. It's recommended to use a conformal coating or potting compound to protect the connector in such environments.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FC681495 Overview

Use the download button to access the FC681495 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FC681, or try a keyword search, such as DC Power Plugs or Jacks
