FCA-125-20 - TE Connectivity

Description: General Purpose Power Relay, DC, Polarized, Monostable, 1 Form C SPDT-CO, 25 A Contact Rating, 28 VDC Coil Voltage, Panel & Printed Circuit Board

Download FCA-125-20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

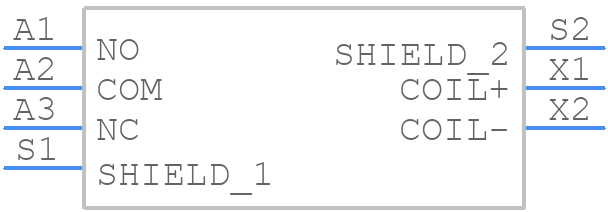

Symbol
FCA-125-20 - TE Connectivity - PCB symbol
click to zoom

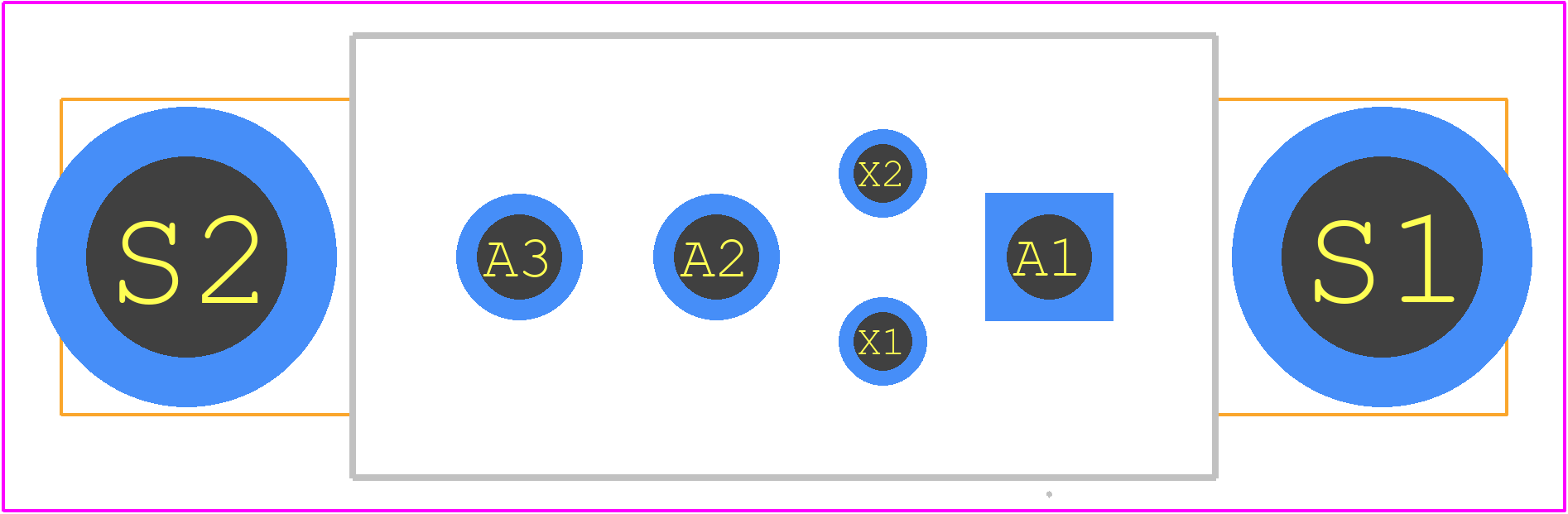

PCB Footprints
FCA-125-20 - TE Connectivity PCB footprint - Other - Other - FCA-125-20-2
click to zoom
3D Models
FCA-125-20 - TE Connectivity - 3D model - Other - FCA-125-20-2
click to zoom

FCA-125-20 Details

  • Manufacturer Part Number:

    FCA-125-20

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Coil Resistance:

    320 Ω

  • Coil Voltage(DC)-Max:

    28 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    25 A

  • Contact Current(DC)-Max:

    25 A

  • End Contact Material:

    SILVER CADMIUM OXIDE

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -70 °C

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPST-CO

  • Relay Type:

    POWER/SIGNAL RELAY

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER HOOK

FCA-125-20 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the FCA-125-20 connector, as specified by TE Connectivity.
  • Yes, the FCA-125-20 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10 G peak acceleration, and 3 axes, as per TE Connectivity's specifications.
  • Yes, the FCA-125-20 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C (-40°F to 257°F) and a humidity range of 5% to 95% RH, as specified by TE Connectivity.
  • The FCA-125-20 connector has a mating cycle life of 500 cycles, as specified by TE Connectivity, which means it can withstand 500 connect and disconnect cycles without compromising its performance.
  • Yes, the FCA-125-20 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental sustainability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FCA-125-20 Overview

Use the download button to access the FCA-125-20 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FCA-1, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
