FCA-125-HX3 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

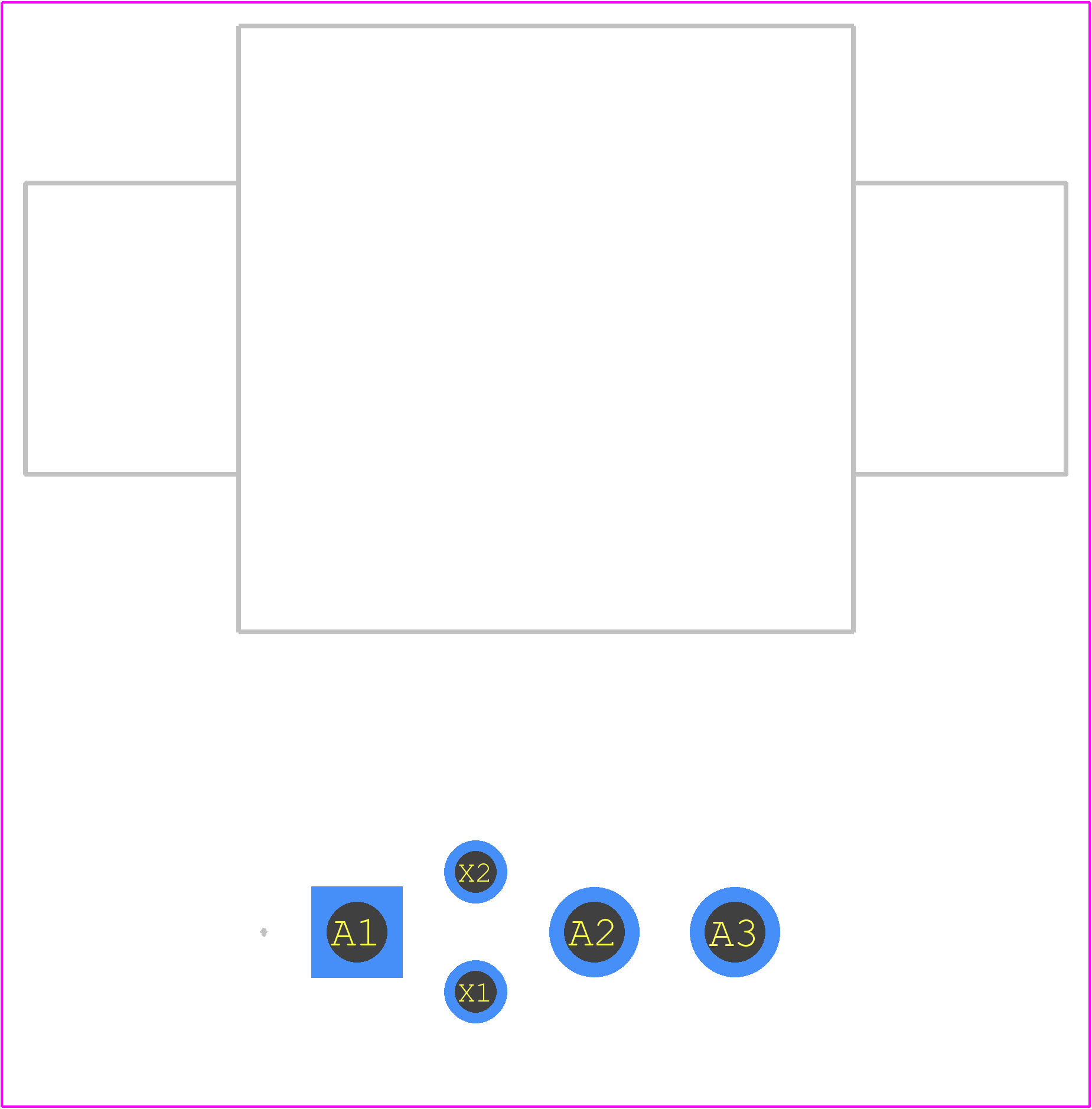

PCB Footprints

FCA-125-HX3 - TE Connectivity PCB footprint - Other - Other - FCA-125-HX3-6

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FCA-125-HX3
Part Number FCA-125-HX3
Manufacturer TE Connectivity
Pin Count 5
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - FCA-125-HX3-6
Released Date Oct 1, 2022
Last Modified Date Nov 28, 2024 1:54 PM UTC
Pinout / Pin List Click Here (Member Only)

FCA-125-HX3 Details

Manufacturer Part Number:
FCA-125-HX3
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
India
ECCN Code:
EAR99
Factory Lead Time:
40 Weeks, 2 Days
Manufacturer:
TE Connectivity
YTEOL:
6
Coil Resistance:
320 Ω
Coil Voltage(DC)-Max:
28 V
Coil/Input Supply Type:
DC
Contact Current(AC)-Max:
25 A
Contact Current(DC)-Max:
25 A
Contact/Output Supply Type:
AC/DC
End Contact Material:
SILVER CADMIUM OXIDE
JESD-609 Code:
e0
Mounting Feature:
PANEL MOUNT
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-70 °C
Relay Action:
MOMENTARY
Relay Form:
1 FORM C
Relay Function:
SPST-CO
Relay Type:
POWER/SIGNAL RELAY
Sealing:
HERMETICALLY SEALED
Surface Mount:
NO
Terminal Finish:
Tin/Lead (Sn/Pb)
Termination Type:
SOLDER/QUICK CONNECT

FCA-125-HX3 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs).
Yes, the FCA-125-HX3 is designed to withstand high-vibration environments. It has a vibration rating of 10-2000 Hz, 10G peak acceleration.
Yes, the FCA-125-HX3 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C (500°F).
The operating temperature range for the FCA-125-HX3 is -40°C to 125°C (-40°F to 257°F).
The FCA-125-HX3 has a moisture sensitivity level (MSL) of 3, which means it can withstand humid or wet environments, but it's recommended to follow proper handling and storage procedures to prevent moisture damage.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

FCA-125-HX3 Overview

Use the download button to access the FCA-125-HX3 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FCA-1, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
