FCA-215-HX4 - TE Connectivity

Description: General Purpose Power Relay, DC, Polarized, Monostable, 2 Form C DPDT-CO, 15 A Contact Rating, 28 VDC Coil Voltage, Panel & Printed Circuit Board

Download FCA-215-HX4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

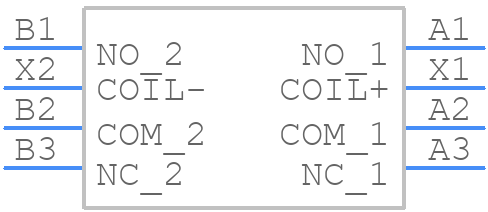

Symbol
FCA-215-HX4 - TE Connectivity - PCB symbol
click to zoom

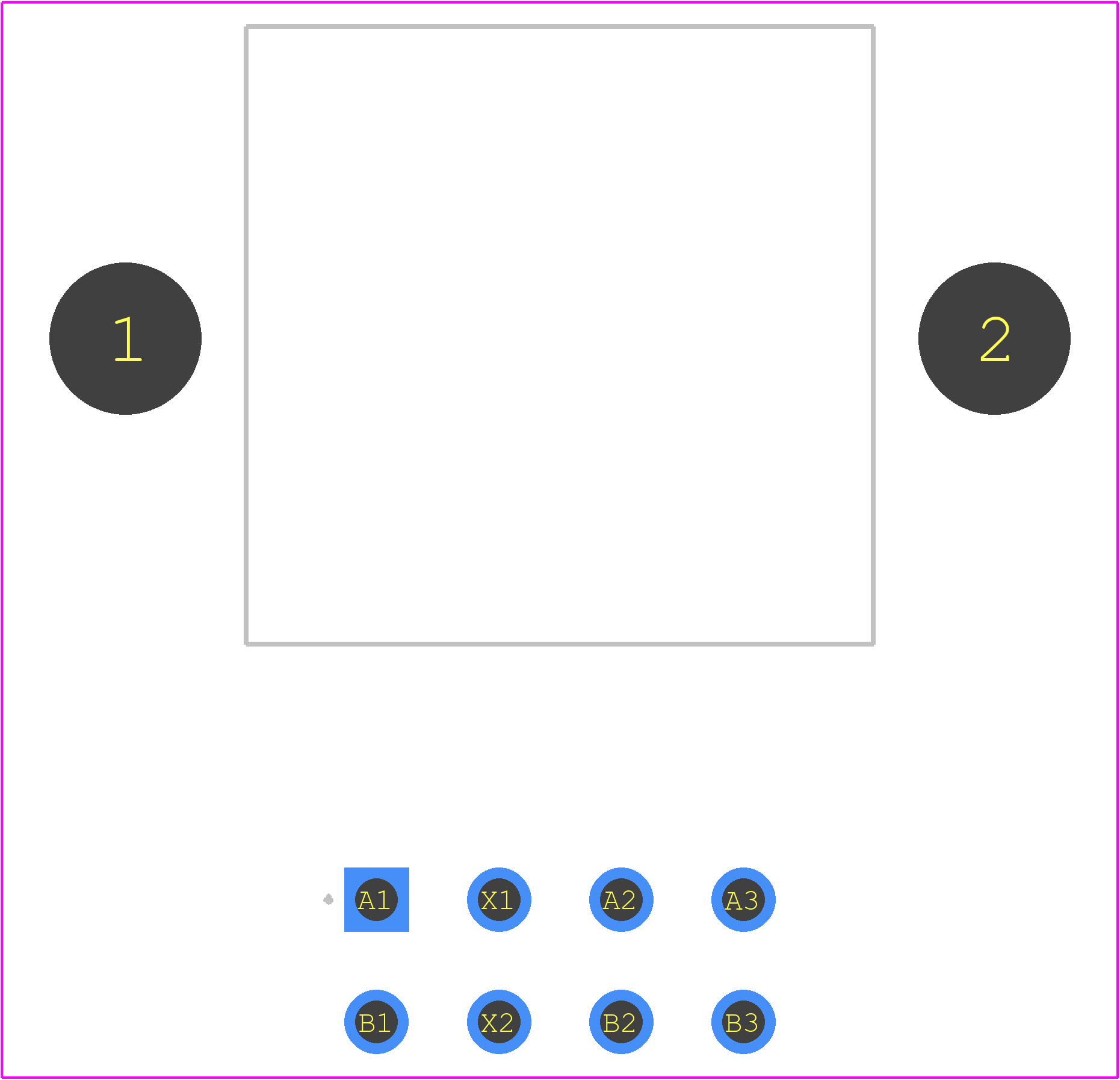

PCB Footprints
FCA-215-HX4 - TE Connectivity PCB footprint - Other - Other - FCA-215-HX4
click to zoom
3D Models
FCA-215-HX4 - TE Connectivity - 3D model - Other - FCA-215-HX4
click to zoom

FCA-215-HX4 Details

  • Manufacturer Part Number:

    FCA-215-HX4

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Coil Resistance:

    320 Ω

  • Coil Voltage(DC)-Max:

    28 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    15 A

  • Contact Current(DC)-Max:

    15 A

  • End Contact Material:

    SILVER CADMIUM OXIDE

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -70 °C

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT-CO

  • Relay Type:

    POWER/SIGNAL RELAY

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

FCA-215-HX4 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
  • Yes, the FCA-215-HX4 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat. 2.
  • Yes, the FCA-215-HX4 has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to water and dust.
  • The FCA-215-HX4 has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications.
  • While the datasheet specifies 24-16 AWG wire sizes, it is possible to use other wire sizes with the FCA-215-HX4, but this may require additional testing and validation to ensure reliable connections.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FCA-215-HX4 Overview

Use the download button to access the FCA-215-HX4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FCA-2, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
