FCA-325-BZ4 Details

• Manufacturer Part Number:

  FCA-325-BZ4

• Brand Name:

  CII

• Part Life Cycle Code:

  Transferred

• Country Of Origin:

  India

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.50

• Factory Lead Time:

  19 Weeks, 2 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  7.27

• Body Breadth:

  25.79 mm

• Body Height:

  25.4 mm

• Body Length or Diameter:

  25.79 mm

• Coil Current(DC)-Max:

  0.097 A

• Coil Operate Voltage(DC):

  18 V

• Coil Power:

  2720 mW

• Coil Release Voltage(DC):

  1.5 V

• Coil Resistance:

  290 Ω

• Coil Voltage(DC)-Max:

  28 V

• Coil Voltage-Nom:

  28 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  25A@115VAC

• Contact Current(AC)-Max:

  25 A

• Contact Current(DC)-Max:

  25 A

• Contact (DC) Max Rating R Load:

  25A@28VDC

• Contact Voltage(AC)-Max:

  115 V

• Contact Voltage(DC)-Max:

  28 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  SILVER CADMIUM OXIDE

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insulation Resistance:

  100000000 Ω

• JESD-609 Code:

  e0

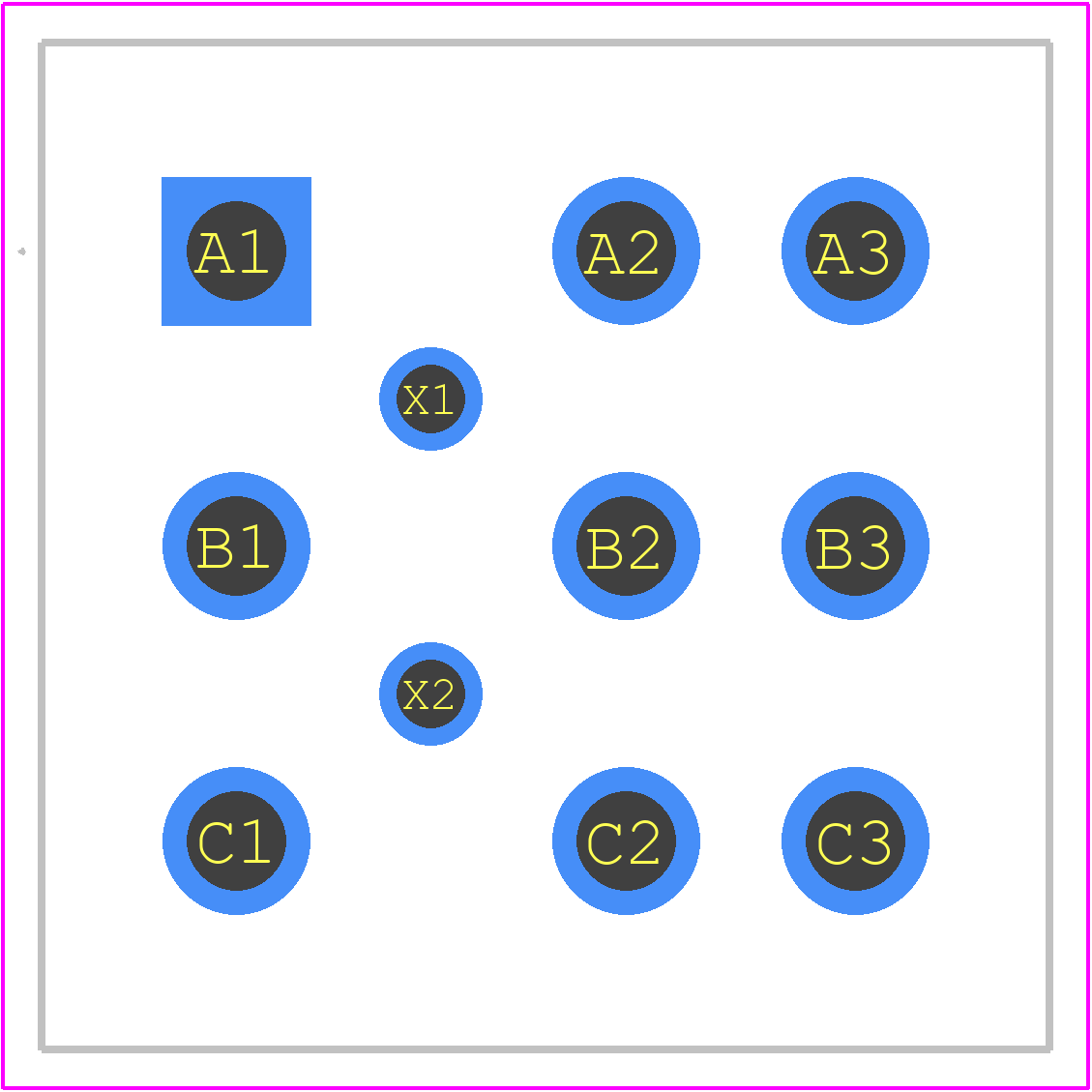

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  11

• Operate Time:

  16 ms

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -70 °C

• Physical Dimension:

  25.79mm x 25.79mm x 25.4mm

• Reference Standard:

  MIL-R-83536

• Relay Action:

  MOMENTARY

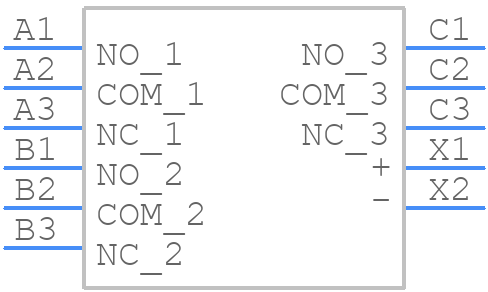

• Relay Form:

  3 FORM C

• Relay Function:

  3PDT-CO

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  16 ms

• Sealing:

  HERMETICALLY SEALED

• Surface Mount:

  NO

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Length:

  0.006299212598425198 inch

• Termination Type:

  SOLDER/QUICK CONNECT
