FCB-405-0617M - TE Connectivity

Description: Contact Features: Contact Base Material Silver Cadmium Oxide | Terminal Plating Tin-Lead | Contact Arrangement 4 Form C, 4PDT, 4 C/O | Contact Current Rating (Max) 5 AMP | Electrical Characteristics: Actuating System DC | Shock Resistance 200G's, 6ms | Vibration Resistance 30G's, 70 – 3000Hz | Coil Magnetic System Polarized, Monostable | Coil Voltage Rating 28 VDC | Coil Resistance 400 OHM | Mechanical Attachment: Product Mount Type Printed Circuit Board | Product Type Features: Relay Options Coil Suppres

Download FCB-405-0617M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

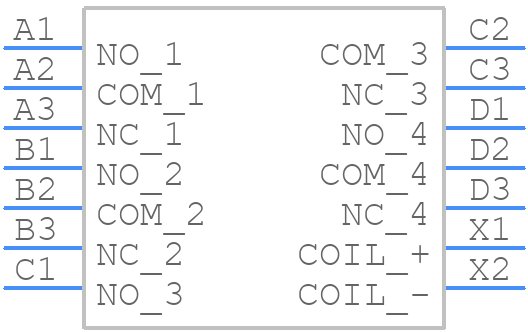

FCB-405-0617M - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

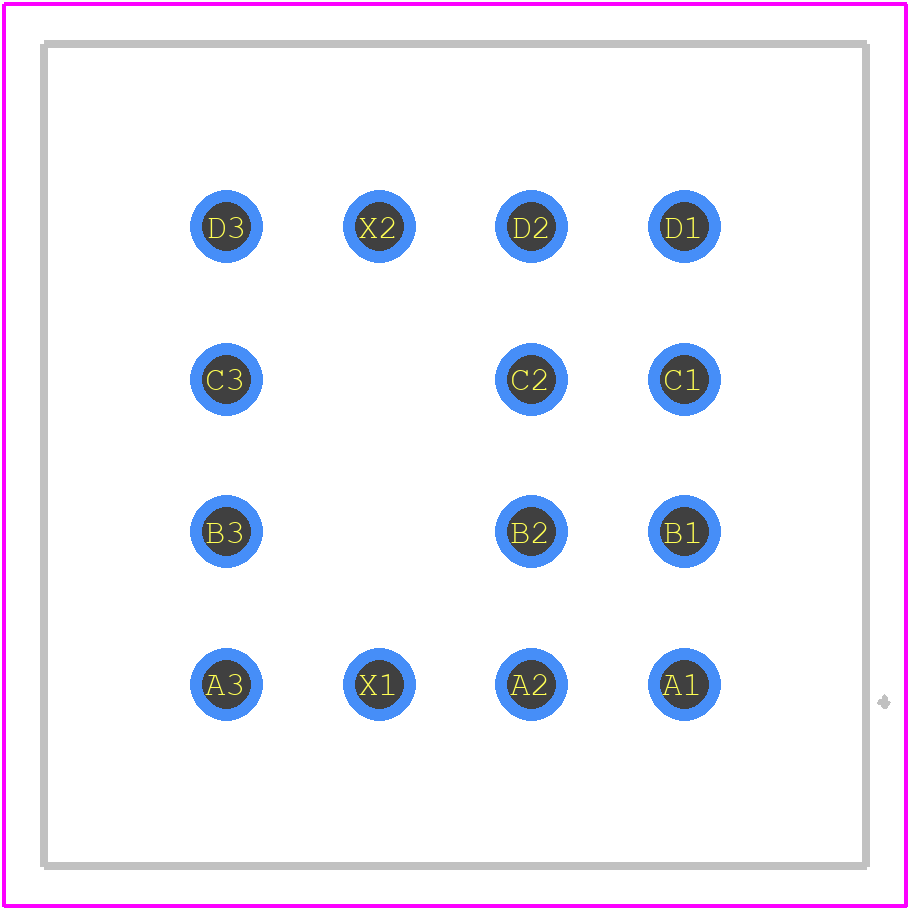

FCB-405-0617M - TE Connectivity PCB footprint - Other - Other - FCB-405-0617M-3
click to zoom
3D Models
FCB-405-0617M - TE Connectivity - 3D model - Other - FCB-405-0617M-3
click to zoom

FCB-405-0617M Details

  • Manufacturer Part Number:

    FCB-405-0617M

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Coil Resistance:

    400 Ω

  • Coil Voltage(DC)-Max:

    28 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    5 A

  • Contact Current(DC)-Max:

    5 A

  • Contact/Output Supply Type:

    AC/DC

  • End Contact Material:

    SILVER CADMIUM OXIDE

  • JESD-609 Code:

    e0

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -70 °C

  • Relay Action:

    MOMENTARY

  • Relay Form:

    4 FORM C

  • Relay Function:

    4PDT-CO

  • Relay Type:

    POWER/SIGNAL RELAY

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Termination Type:

    SOLDER/QUICK CONNECT

FCB-405-0617M Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the FCB-405-0617M is designed to withstand vibrations and is suitable for use in high-vibration environments.
  • The operating temperature range for the FCB-405-0617M is -40°C to 125°C (-40°F to 257°F).
  • Yes, the FCB-405-0617M is designed for outdoor use and can withstand exposure to moisture and humidity.
  • The mating cycle life of the FCB-405-0617M is 500 cycles.
