FCE17-E09PA-440 - Amphenol

Description: D-Sub Standard Connectors .318 R/A 9P 4-40 THR PIN 820 PF

Download FCE17-E09PA-440 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FCE17-E09PA-440 - Amphenol - PCB symbol
click to zoom
PCB Footprints

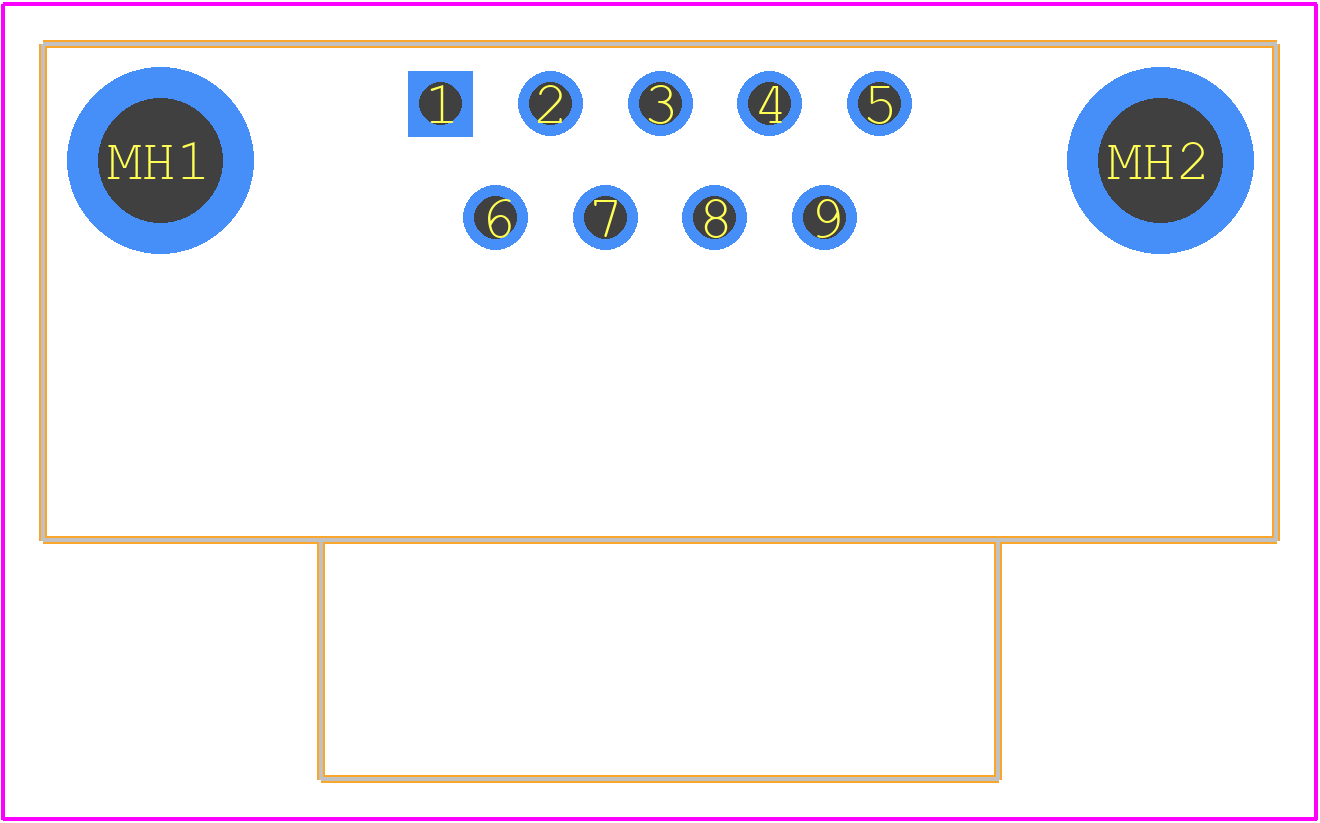

FCE17-E09PA-440 - Amphenol PCB footprint - Other - Other - FCE17-E09PA-440-2
click to zoom
3D Models
FCE17-E09PA-440 - Amphenol - 3D model - Other - FCE17-E09PA-440-2
click to zoom

FCE17-E09PA-440 Details

  • Manufacturer Part Number:

    FCE17-E09PA-440

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Unknown

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8.7

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    MATTE TIN

  • Contact Finish Termination:

    MATTE TIN

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

FCE17-E09PA-440 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the FCE17-E09PA-440 is designed to withstand vibrations up to 10G (10-2000 Hz) and is suitable for use in high-vibration environments.
  • The FCE17-E09PA-440 is rated for operation in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow proper installation and sealing procedures to ensure environmental resistance.
  • The maximum current rating for each contact is 7.5A, but it's essential to consider the overall connector design, wire gauge, and application-specific requirements to ensure safe and reliable operation.
  • Yes, the FCE17-E09PA-440 is designed to accommodate shielded cables, and the connector's shielded design helps to reduce electromagnetic interference (EMI).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FCE17-E09PA-440 Overview

Use the download button to access the FCE17-E09PA-440 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FCE17, or try a keyword search, such as Other Interconnects
