FCE17-E09PM-290 - Amphenol

Description: Amphenol FCE17 Series Panel Mount Filtered Solder D-Sub Connector Plug, 9 Way, 5A

Download FCE17-E09PM-290 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FCE17-E09PM-290 - Amphenol - PCB symbol
click to zoom
PCB Footprints

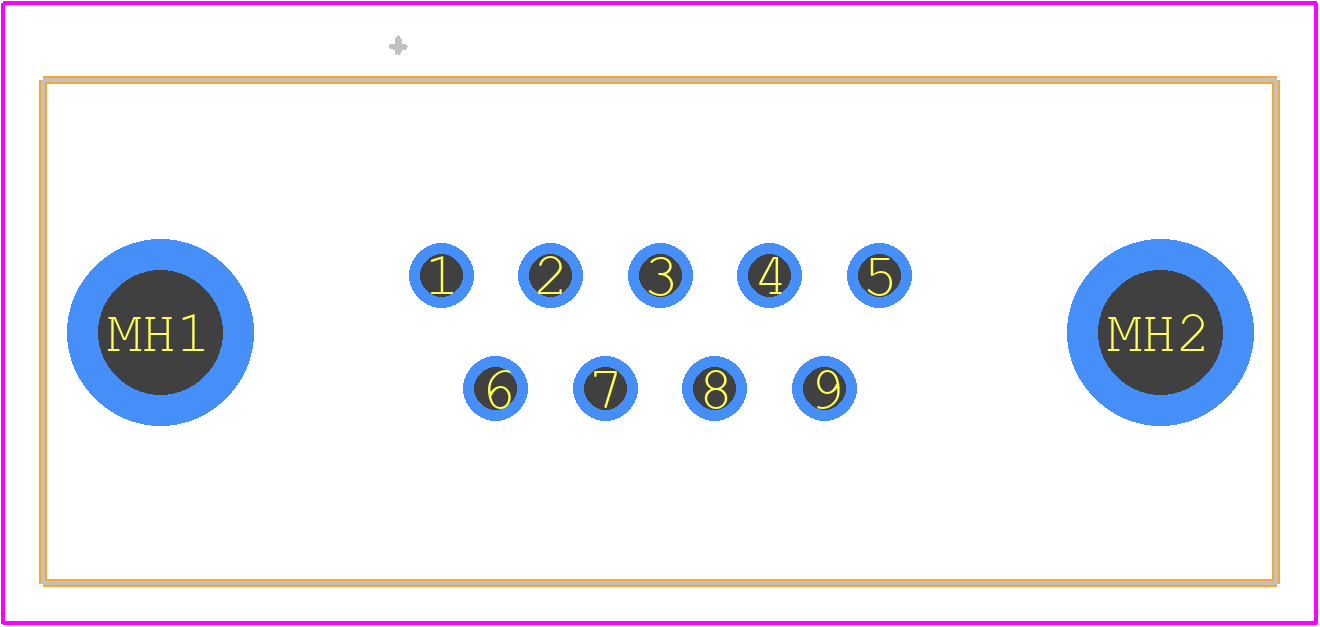

FCE17-E09PM-290 - Amphenol PCB footprint - Other - Other - FCE17-E09PM-290-2
click to zoom
3D Models
FCE17-E09PM-290 - Amphenol - 3D model - Other - FCE17-E09PM-290-2
click to zoom

FCE17-E09PM-290 Details

  • Manufacturer Part Number:

    FCE17-E09PM-290

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8.7

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    MATTE TIN

  • Contact Finish Termination:

    MATTE TIN

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

FCE17-E09PM-290 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.0 Nm (4.4-8.8 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the FCE17-E09PM-290 is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as railway, industrial, and automotive systems.
  • The operating temperature range for the FCE17-E09PM-290 is -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the connector's performance and reliability may be affected at extreme temperatures.
  • Yes, the FCE17-E09PM-290 is suitable for outdoor use. It has a IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter (3.3 feet) for 30 minutes. However, it's essential to ensure proper sealing and installation to maintain the connector's environmental rating.
  • The FCE17-E09PM-290 is designed to be compatible with other mating connectors that meet the same industry standards (e.g., IEC 61076-2-012). However, it's recommended to verify compatibility and perform testing before using connectors from different manufacturers in a production environment.
