The recommended torque is 0.5 Nm to 1.5 Nm (5-13.5 in-lbs) for the screw terminals, and 0.2 Nm to 0.5 Nm (1.8-4.5 in-lbs) for the jackscrew.
Yes, the FCR11650EW is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
Yes, the FCR11650EW has a rating of IP67 (IEC 60529) and is suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors.
The maximum operating temperature for the FCR11650EW is +85°C (185°F), with a storage temperature range of -40°C to +125°C (-40°F to 257°F).
Yes, the FCR11650EW is designed to accept AWG24 to AWG20 wire sizes, but it's essential to follow the recommended wire stripping and termination procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FCR11650EW Overview

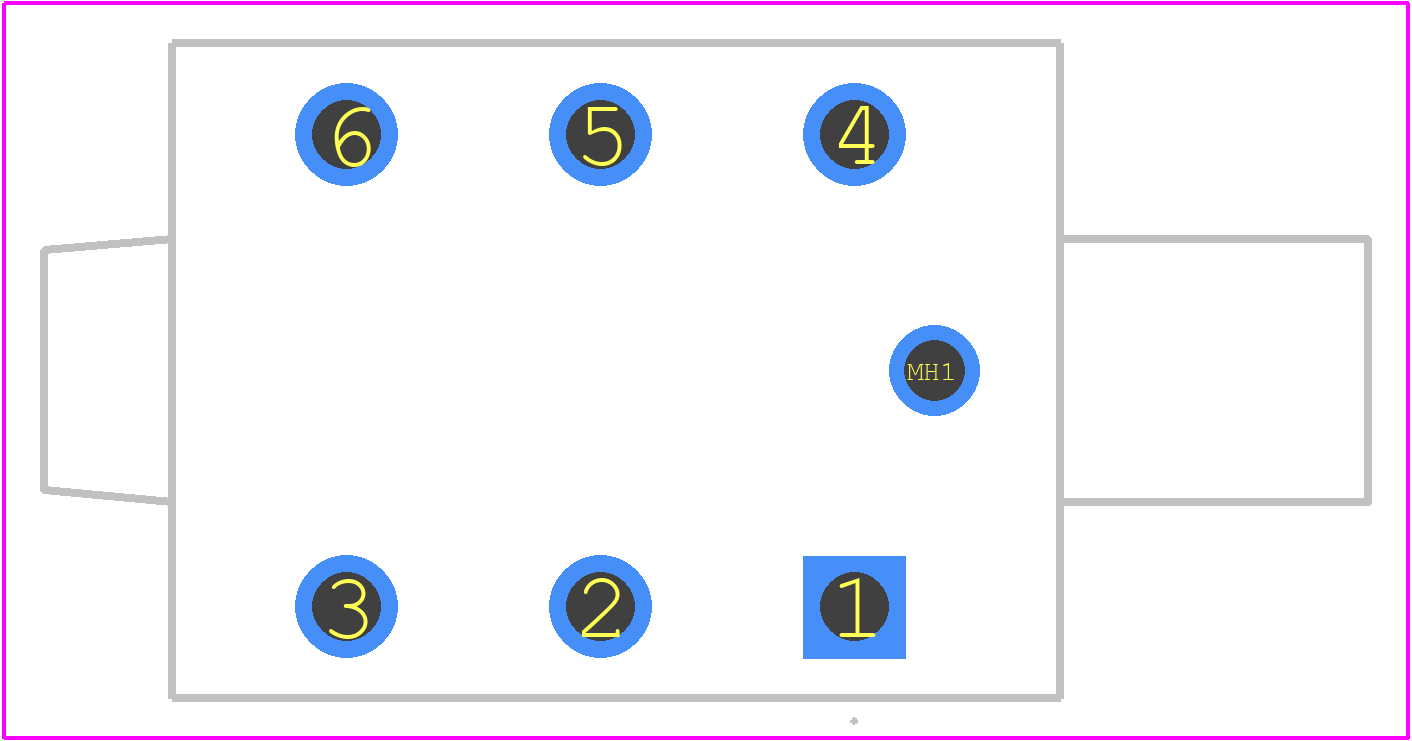

Use the download button to access the FCR11650EW schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FCR11,
or try a keyword search, such as Audio/RCA Connectors
