The recommended torque is 0.5 Nm to 1.5 Nm (5-15 lbf-in) for the screw terminals, and 0.2 Nm to 0.5 Nm (2-5 lbf-in) for the jackscrew.
Yes, the FCR684206T is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
The FCR684206T has a rating of IP40 (IEC 60529), which means it provides protection against solid objects larger than 1 mm, but is not fully sealed against moisture. It can be used outdoors, but may require additional protection or sealing in harsh environments.
The FCR684206T has an operating temperature range of -40°C to +85°C (-40°F to +185°F).
The FCR684206T is designed for use with AWG20 to AWG24 wire. However, it's recommended to use AWG20 or AWG22 wire for optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FCR684206T Overview

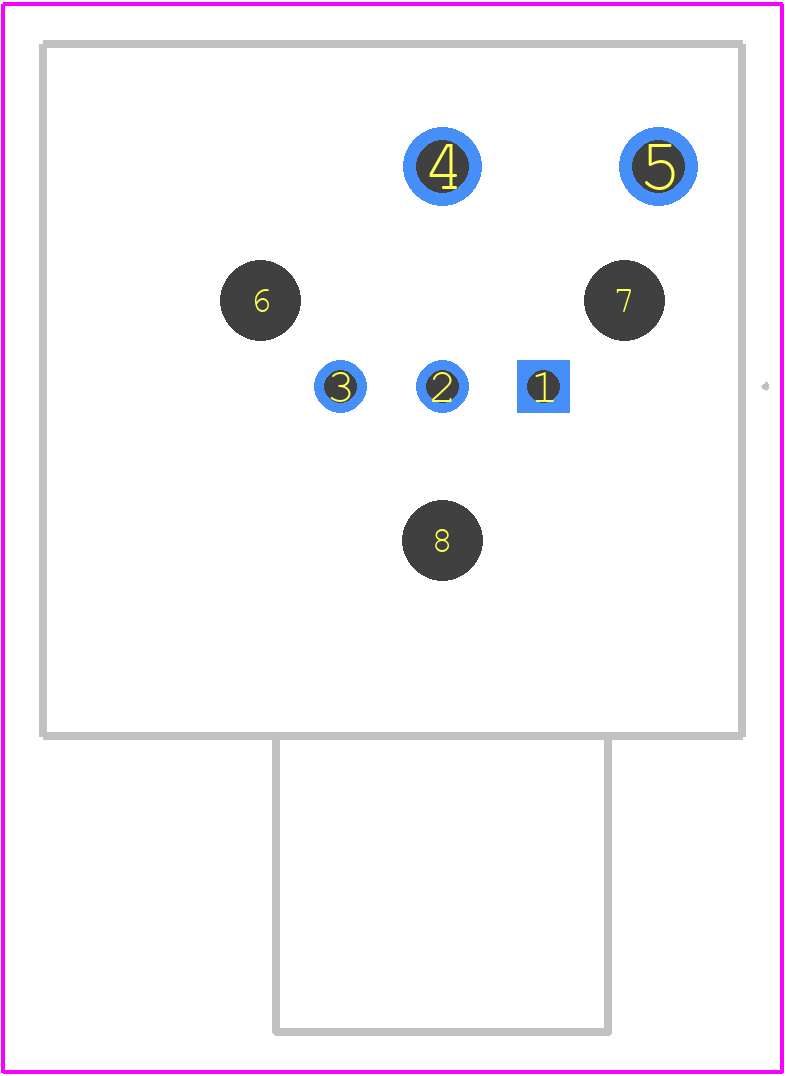

Use the download button to access the FCR684206T schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FCR68,
or try a keyword search, such as Audio/RCA Connectors
