FDBL86210-F085 - onsemi

Description: RoHS Compliant; Low RDS(on); Low QG and Capacitance; AEC−Q101 Qualified and PPAP Capable

Download FDBL86210-F085 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

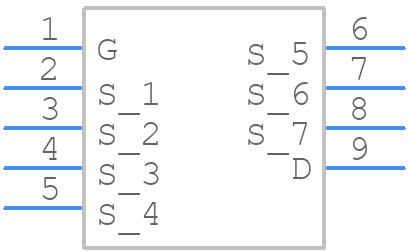

FDBL86210-F085 - onsemi - PCB symbol
click to zoom
PCB Footprints

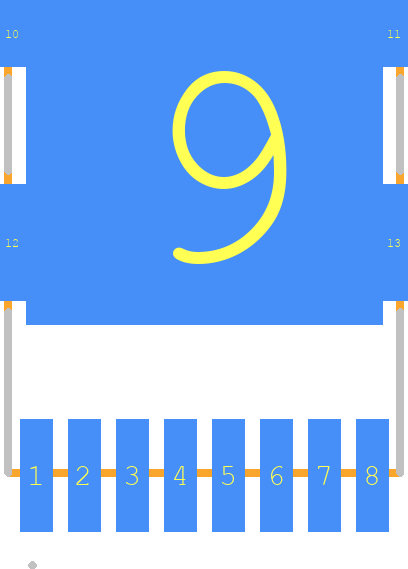

FDBL86210-F085 - onsemi PCB footprint - Other - Other - H−PSOF8L 11.68x9.80 CASE 100CU ISSUE O
click to zoom
3D Models
FDBL86210-F085 - onsemi - 3D model - Other - H−PSOF8L 11.68x9.80 CASE 100CU ISSUE O
click to zoom

FDBL86210-F085 Details

  • Manufacturer Part Number:

    FDBL86210-F085

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-LL 8L

  • Manufacturer Package Code:

    100CU

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Configuration:

    SINGLE

  • Drain Current-Max (ID):

    169 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Operating Temperature-Max:

    175 °C

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    500 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

FDBL86210-F085 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum allowed voltage on the VIN pin is 5.5V. Exceeding this voltage may damage the device.
  • Yes, the FDBL86210-F085 is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, additional testing and validation may be required.
  • Check the input voltage, output voltage, and enable pin. Verify that the device is properly connected and that the input capacitor is of sufficient value. Consult the datasheet and application notes for troubleshooting guidelines.
