FDBL9401-F085 - onsemi

Description: Typical Qg(tot) = 220 nC at VGS = 10V, ID = 80 A; UIS Capability; RoHS Compliant; Qualified to AEC Q101; Typical RDS(on) = 0.5 mΩ at VGS = 10V, ID = 80 A

Download FDBL9401-F085 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

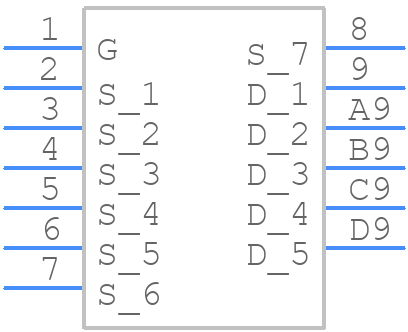

FDBL9401-F085 - onsemi - PCB symbol
click to zoom
PCB Footprints

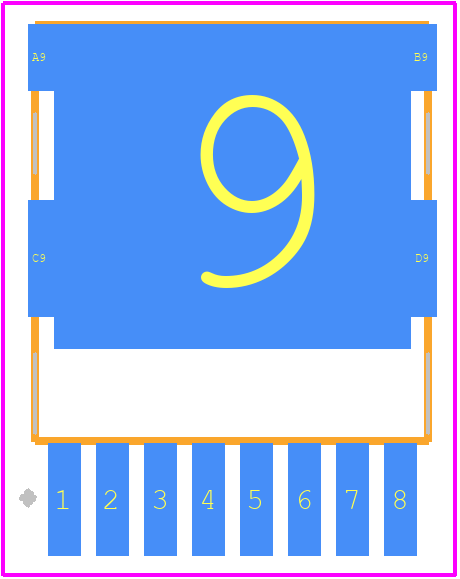

FDBL9401-F085 - onsemi PCB footprint - Other - Other - FDBL9401-F085-2
click to zoom
3D Models
FDBL9401-F085 - onsemi - 3D model - Other - FDBL9401-F085-2
click to zoom

FDBL9401-F085 Details

  • Manufacturer Part Number:

    FDBL9401-F085

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-LL 8L

  • Manufacturer Package Code:

    100CU

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Configuration:

    SINGLE

  • Drain Current-Max (ID):

    300 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Operating Temperature-Max:

    175 °C

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    429 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30
