For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer, and to place thermal vias under the device to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it is recommended to follow the recommended operating temperature range, use a suitable thermal interface material, and ensure good airflow around the device.
The maximum allowed voltage on the input pins is typically 5.5V, but it's recommended to check the specific datasheet for the exact voltage rating and to ensure that the input voltage does not exceed the recommended maximum rating.
Yes, the FDBL9403L-F085 is designed for high-frequency switching applications, but it's recommended to follow the recommended operating frequency range and to ensure that the device is properly bypassed and decoupled to minimize electromagnetic interference (EMI).
To troubleshoot issues with the device not turning on or not functioning properly, check the input voltage, ensure that the device is properly soldered and connected, and verify that the input signals are within the recommended operating range. Also, check for any signs of physical damage or overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDBL9403L-F085 Overview

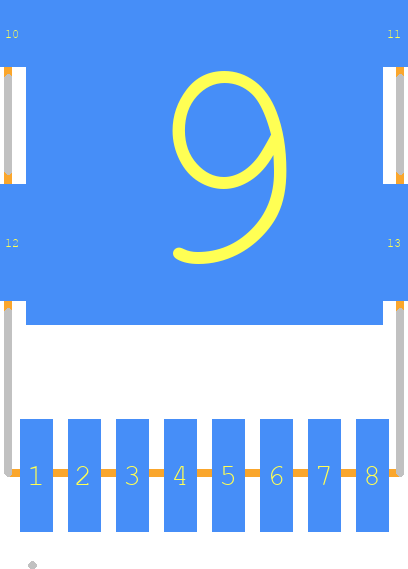

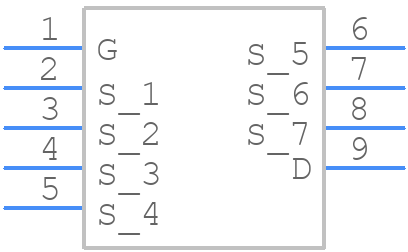

Use the download button to access the FDBL9403L-F085 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDBL9,
or try a keyword search, such as Power Field-Effect Transistors
