FDC37C78-HT - Microchip

Description: Microchip FDC37C78-HT, Input Output Controller, DMA, 48-Pin TQFP

Download FDC37C78-HT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

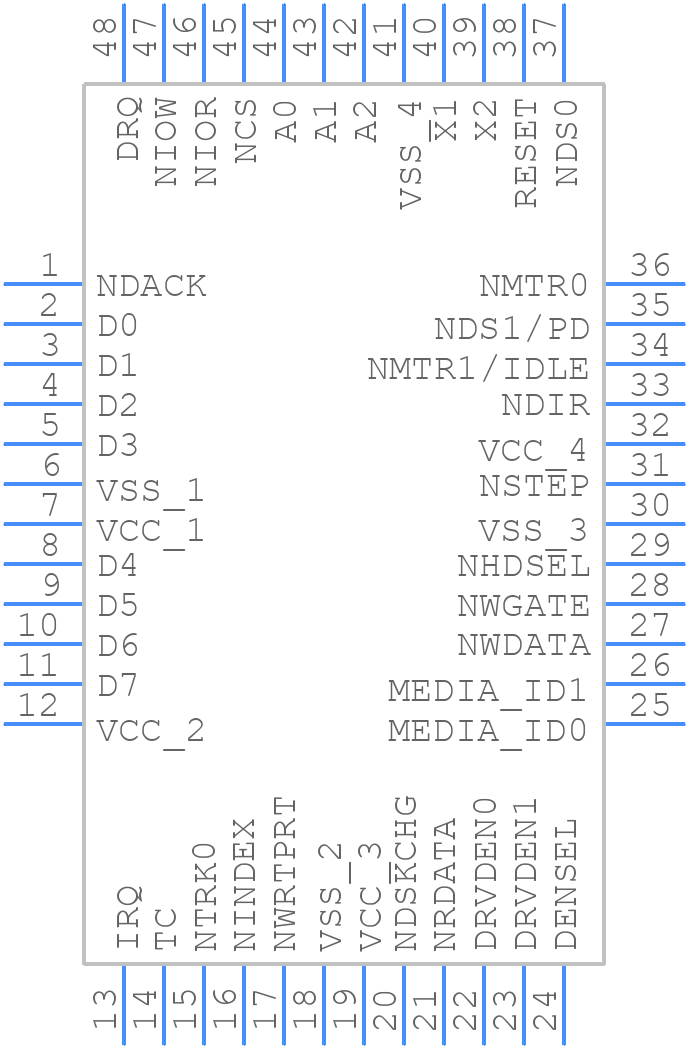

FDC37C78-HT - Microchip - PCB symbol
click to zoom
PCB Footprints
FDC37C78-HT - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 48 Pin TQFP-1
click to zoom
3D Models
FDC37C78-HT - Microchip - 3D model - Quad Flat Packages - 48 Pin TQFP-1
click to zoom

FDC37C78-HT Details

  • Manufacturer Part Number:

    FDC37C78-HT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

FDC37C78-HT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the FDC37C78-HT is 2.7V to 5.5V.
  • The FDC37C78-HT can be configured for I2C or SPI communication by setting the appropriate pins high or low during power-up. Refer to the datasheet for specific pin configurations.
  • The maximum frequency of the FDC37C78-HT's internal oscillator is 16 MHz.
  • Yes, the FDC37C78-HT has a low-power mode that can be enabled by setting the appropriate register bits. This mode reduces power consumption and can be used to extend battery life in battery-powered applications.
  • The FDC37C78-HT's non-volatile memory can be programmed using the ICSP (In-Circuit Serial Programming) interface or through the I2C or SPI interface using a programming tool such as MPLAB X IDE.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDC37C78-HT Overview

Use the download button to access the FDC37C78-HT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDC37, or try a keyword search, such as Secondary Storage Controllers
