FDCC2004C-FLYYBW-51LR - Fordata

Description: LCD, character; Controller: S6B0066U; Text: 20, 4 characters; Technology: STN; Backlight: LED; Point: blue

Download FDCC2004C-FLYYBW-51LR Model

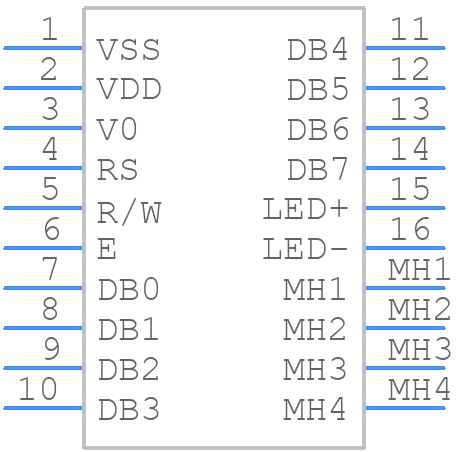

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

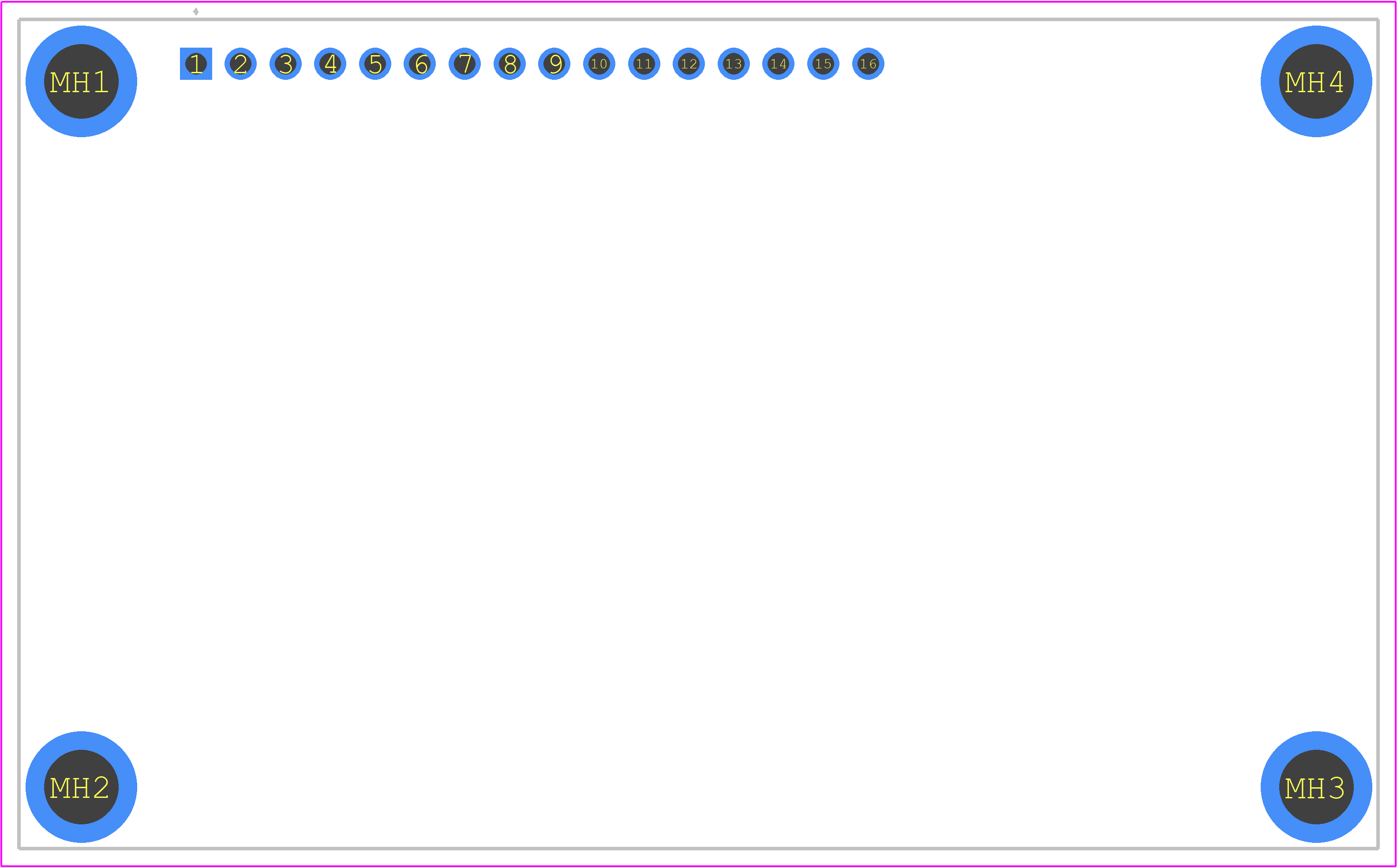

FDCC2004C-FLYYBW-51LR - Fordata PCB footprint - Other - Other - FDCC2004C-FLYYBW-51LR-1
click to zoom

FDCC2004C-FLYYBW-51LR Details

  • Manufacturer Part Number:

    FDCC2004C-FLYYBW-51LR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Manufacturer:

    FORDATA Electronic Co Ltd

  • Backlight:

    LED-YELLOW GREEN

  • Display Format:

    20 X 4

  • Display Height:

    4.03 mm

  • Fluid Type:

    STN

  • Number of Functions:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    5 X 8 DOT MATRIX LCD DISPLAY

  • Packing Method:

    BOX

  • Polarization Mode:

    TRANSFLECTIVE

  • Supply Voltage-Max:

    4.7 V

  • Supply Voltage-Min:

    4.3 V

  • Supply Voltage-Nom:

    4.5 V

  • Viewing Area Height:

    22 mm

  • Viewing Area Length:

    60 mm

FDCC2004C-FLYYBW-51LR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range is -40°C to 85°C, as specified in the datasheet.
  • To ensure reliability in high-vibration environments, it is recommended to follow proper mounting and soldering procedures, and to consider using additional mechanical support or vibration dampening measures if necessary.
  • While the FDCC2004C-FLYYBW-51LR is designed to be resistant to moisture, it is still important to follow proper sealing and encapsulation procedures to prevent water ingress. Additionally, the device should be operated within the recommended temperature and humidity ranges to ensure reliability.
  • To troubleshoot issues with the FDCC2004C-FLYYBW-51LR, start by reviewing the datasheet and application notes, and then perform basic checks such as verifying power supply voltage, signal integrity, and proper soldering. If issues persist, contact FORDATA Electronic Co Ltd or a qualified engineer for further assistance.
  • Yes, it is recommended to follow proper PCB layout guidelines to ensure signal integrity and minimize electromagnetic interference (EMI). This includes using a solid ground plane, minimizing trace lengths, and using shielding or guard rings as necessary.
