FDMS2572 - onsemi

Description: Typ Qg = 31nC at VGS = 10 V; Max rDS(on) = 47mΩ at VGS = 10V, ID = 4.5A; Optimized efficiency at high frequencies ; Low Miller Charge ; RoHS Compliant ; UIS Capability (Single pulse and Repetitive pulse)

Download FDMS2572 Model

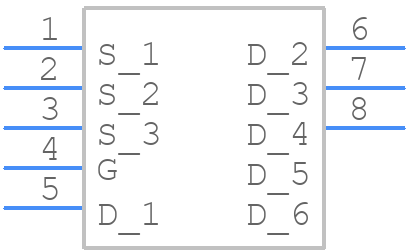

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDMS2572 - onsemi PCB footprint - Other - Other - WDFN8 5x6, 1.27P CASE 506DP ISSUE O
click to zoom
3D Models
FDMS2572 - onsemi  - 3D model - Other - WDFN8 5x6, 1.27P CASE 506DP ISSUE O
click to zoom

FDMS2572 Details

  • Manufacturer Part Number:

    FDMS2572

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-8

  • Package Description:

    ROHS COMPLIANT, POWER56, 8 PIN

  • Manufacturer Package Code:

    506DP

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    150 V

  • Drain Current-Max (ID):

    27 A

  • Drain-source On Resistance-Max:

    0.053 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-XDSO-N8

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    2.8 W

  • Pulsed Drain Current-Max (IDM):

    30 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
