FDSD0630-H-3R3M=P3 - Murata Electronics

Description: Toko FDSD0630 Series Shielded Wire-wound SMD Inductor with a Powered Iron Core, 3.3 μH Wire-Wound 10A Idc

Download FDSD0630-H-3R3M=P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FDSD0630-H-3R3M=P3 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

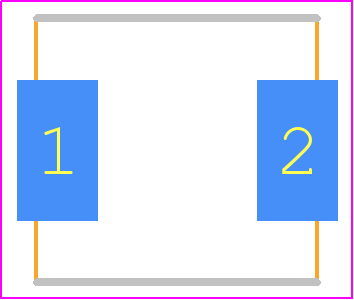

FDSD0630-H-3R3M=P3 - Murata Electronics PCB footprint - Other - Other - 2726 (7066) T=3.0mm
click to zoom
3D Models
FDSD0630-H-3R3M=P3 - Murata Electronics - 3D model - Other - 2726 (7066) T=3.0mm
click to zoom

FDSD0630-H-3R3M=P3 Details

  • Manufacturer Part Number:

    FDSD0630-H-3R3M=P3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Case/Size Code:

    2726

  • Construction:

    Rectangular

  • Core Material:

    METAL ALLOY

  • DC Resistance:

    0.028 Ω

  • Inductance-Nom (L):

    3.3 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    3 mm

  • Package Length:

    7 mm

  • Package Style:

    SMT

  • Package Width:

    6.6 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    5.6 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

FDSD0630-H-3R3M=P3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the FDSD0630-H-3R3M=P3 can be found in the Murata Land Pattern document, which provides detailed information on the recommended pad layout and dimensions for optimal assembly and reliability.
  • The FDSD0630-H-3R3M=P3 is a moisture-sensitive device and should be handled according to the JEDEC J-STD-033 standard. This includes storing the devices in a dry environment, using a dry pack or nitrogen-filled packaging, and following proper baking procedures before reflow soldering.
  • The maximum reflow temperature for the FDSD0630-H-3R3M=P3 is 260°C, with a recommended reflow profile that includes a peak temperature of 250°C for 10-30 seconds.
  • The FDSD0630-H-3R3M=P3 is designed to withstand moderate vibration levels, but it's recommended to consult with Murata's application engineers to determine the suitability of the device for specific high-vibration applications.
  • The recommended cleaning process for the FDSD0630-H-3R3M=P3 involves using a mild detergent and deionized water, followed by a thorough rinse and dry cycle. Avoid using harsh chemicals or ultrasonic cleaning methods, as they may damage the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDSD0630-H-3R3M=P3 Overview

Use the download button to access the FDSD0630-H-3R3M=P3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDSD0, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
