FDUE1245-H-2R2M=P3 Frequently Asked Questions (FAQs)

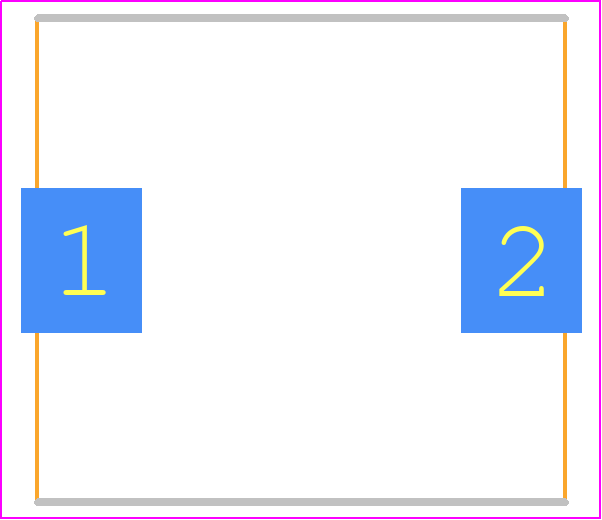

• What is the recommended land pattern for this component?
  Murata recommends a land pattern with a pad size of 2.2mm x 1.3mm for the FDUE1245-H-2R2M=P3. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal issues.
• Can I use this component in high-temperature applications?
  The FDUE1245-H-2R2M=P3 is rated for operation up to 125°C. However, it's essential to consider the derating curve and ensure that the component is not exposed to temperatures above the recommended maximum operating temperature to prevent degradation or failure.
• How do I handle the component during assembly to prevent damage?
  To prevent damage, handle the FDUE1245-H-2R2M=P3 by the edges, avoid touching the component's surface, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD).
• What is the recommended soldering profile for this component?
  Murata recommends a soldering profile with a peak temperature of 260°C and a dwell time of 10-30 seconds. It's essential to follow a controlled soldering process to prevent thermal shock and ensure reliable connections.
• Can I use this component in high-vibration or high-shock applications?
  The FDUE1245-H-2R2M=P3 is designed to withstand moderate vibration and shock. However, it's essential to evaluate the component's performance in your specific application and consider additional mechanical support or fixation if necessary.
