Part Image

FDV0620-H-4R7M=P3 - Murata Electronics

Description: FDV0620 Series Inductor 4.7μH ±20% 2926 (7467)

Download FDV0620-H-4R7M=P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FDV0620-H-4R7M=P3 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

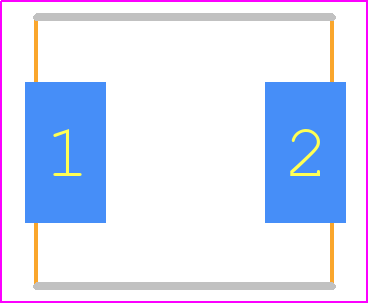

FDV0620-H-4R7M=P3 - Murata Electronics PCB footprint - Other - Other - 2926 (7467) T=2.0mm
click to zoom
3D Models
FDV0620-H-4R7M=P3 - Murata Electronics - 3D model - Other - 2926 (7467) T=2.0mm
click to zoom

FDV0620-H-4R7M=P3 Details

  • Manufacturer Part Number:

    FDV0620-H-4R7M=P3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Case/Size Code:

    7467/2926

  • Construction:

    Rectangular

  • Core Material:

    METAL ALLOY

  • DC Resistance:

    0.068 Ω

  • Inductance-Nom (L):

    4.7 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    2 mm

  • Package Length:

    7.4 mm

  • Package Style:

    SMT

  • Package Width:

    6.7 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    2.8 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

FDV0620-H-4R7M=P3 Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 1.2mm x 0.8mm, and a spacing of 0.5mm between pads. A detailed land pattern can be found in the Murata's recommended land pattern document.
  • The FDV0620-H-4R7M=P3 is rated for operation up to 125°C, but it's recommended to derate the component's power handling at high temperatures. Consult Murata's reliability handbook for more information on high-temperature operation.
  • Handle the component by the tabs or the body, avoiding touching the leads or the component's top surface. Use a vacuum pick-up tool or tweezers to handle the component during assembly. Avoid bending or flexing the leads during assembly.
  • Murata recommends a soldering profile with a peak temperature of 260°C, and a dwell time of 10-30 seconds. The soldering profile should be within the limits specified in the JEDEC J-STD-020 standard.
  • The FDV0620-H-4R7M=P3 is rated for operation in a humid environment, but it's recommended to follow the IPC-J-STD-020 standard for moisture sensitivity. Baking the component before assembly can help prevent moisture-related issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDV0620-H-4R7M=P3 Overview

Use the download button to access the FDV0620-H-4R7M=P3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDV06, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
