FDVE1040-H-2R2M=P3 - Murata Electronics

Description: FDVE1040 Series Inductor 2.2μH ±20% 4440 (112100)

Download FDVE1040-H-2R2M=P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FDVE1040-H-2R2M=P3 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

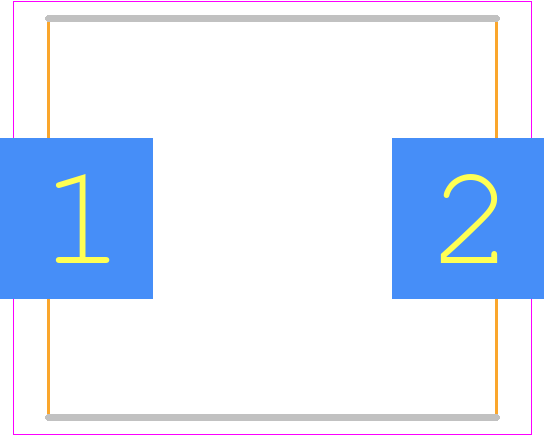

FDVE1040-H-2R2M=P3 - Murata Electronics PCB footprint - Other - Other - 4440 (112100) T=4.0mm
click to zoom
3D Models
FDVE1040-H-2R2M=P3 - Murata Electronics - 3D model - Other - 4440 (112100) T=4.0mm
click to zoom

FDVE1040-H-2R2M=P3 Details

  • Manufacturer Part Number:

    FDVE1040-H-2R2M=P3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Case/Size Code:

    112100/4440

  • Construction:

    Rectangular

  • Core Material:

    METAL ALLOY

  • DC Resistance:

    0.0068 Ω

  • Inductance-Nom (L):

    2.2 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    4 mm

  • Package Length:

    11.2 mm

  • Package Style:

    SMT

  • Package Width:

    10 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    11.6 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

FDVE1040-H-2R2M=P3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the FDVE1040-H-2R2M=P3 can be found in the Murata Land Pattern document, which provides detailed information on the recommended pad layout and dimensions for optimal performance and reliability.
  • To ensure reliability in high-temperature applications, it is recommended to follow the recommended derating guidelines provided in the datasheet, and to consider using a thermal interface material to improve heat dissipation. Additionally, ensuring good airflow and avoiding thermal hotspots can help to reduce the risk of overheating.
  • Yes, the FDVE1040-H-2R2M=P3 is suitable for high-frequency applications up to 1 GHz. However, it is recommended to consult the datasheet and application notes for specific guidance on impedance matching and layout considerations to ensure optimal performance.
  • The maximum allowable voltage for the FDVE1040-H-2R2M=P3 is 50 V. Exceeding this voltage may result in damage to the component or affect its reliability.
  • It is recommended to follow standard handling and assembly procedures for surface-mount devices, including using anti-static wrist straps and mats, and avoiding excessive heat and mechanical stress during rework.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDVE1040-H-2R2M=P3 Overview

Use the download button to access the FDVE1040-H-2R2M=P3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDVE1, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
