FDVE1040-H-2R7M=P3 - Murata Electronics

Description: FDVE1040 Series Inductor 2.7μH ±20% 4440 (112100)

Download FDVE1040-H-2R7M=P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FDVE1040-H-2R7M=P3 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

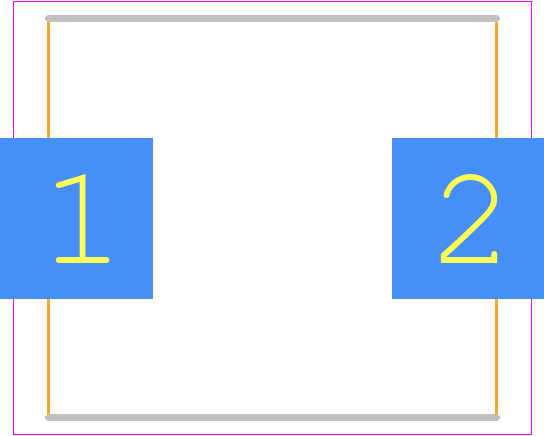

FDVE1040-H-2R7M=P3 - Murata Electronics PCB footprint - Other - Other - 4440 (112100) T=4.0mm
click to zoom
3D Models
FDVE1040-H-2R7M=P3 - Murata Electronics - 3D model - Other - 4440 (112100) T=4.0mm
click to zoom

FDVE1040-H-2R7M=P3 Details

  • Manufacturer Part Number:

    FDVE1040-H-2R7M=P3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Case/Size Code:

    112100/4440

  • Construction:

    Rectangular

  • Core Material:

    METAL ALLOY

  • DC Resistance:

    0.0088 Ω

  • Inductance-Nom (L):

    2.7 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    4 mm

  • Package Length:

    11.2 mm

  • Package Style:

    SMT

  • Package Width:

    10 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    10.5 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

FDVE1040-H-2R7M=P3 Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 1.3mm x 0.8mm, and a spacing of 0.5mm between pads. Refer to the Murata Land Pattern Recommendation document for more details.
  • The FDVE1040-H-2R7M=P3 is rated for operation up to 125°C. However, it's recommended to derate the voltage and current ratings according to the temperature derating curve provided in the datasheet.
  • Murata recommends following the moisture sensitivity level (MSL) guidelines for handling and storage. Additionally, consider applying a conformal coating or potting compound to protect the device from moisture.
  • The ESR of the FDVE1040-H-2R7M=P3 is not explicitly stated in the datasheet. However, according to Murata's application notes, the ESR is typically around 10-20 mΩ for this type of device.
  • The FDVE1040-H-2R7M=P3 is designed for general-purpose use and may not be suitable for high-frequency applications above 100 kHz. For high-frequency applications, consider using a device specifically designed for high-frequency use, such as Murata's HF series.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDVE1040-H-2R7M=P3 Overview

Use the download button to access the FDVE1040-H-2R7M=P3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDVE1, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
