Terminus recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A heat sink or thermal pad can also be used to improve thermal performance.
Use a low-ESR capacitor (e.g., 10uF) close to the device's power pins, and ensure the power supply can provide a stable 1.8V or 3.3V output with minimal ripple (<100mV).
The FE1.1 can achieve up to 100Mbps data transfer rate. To achieve this, use a high-speed PCB design, ensure signal integrity, and optimize the firmware to minimize latency and maximize throughput.
Use a secure boot mechanism, implement a firmware update protocol (e.g., UART or SPI), and ensure the update process is atomic and failsafe to prevent bricking the device.
Use a logic analyzer or oscilloscope to monitor signals, implement debug logs and error handling in firmware, and use a JTAG or SWD interface for low-level debugging.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FE1.1 Overview

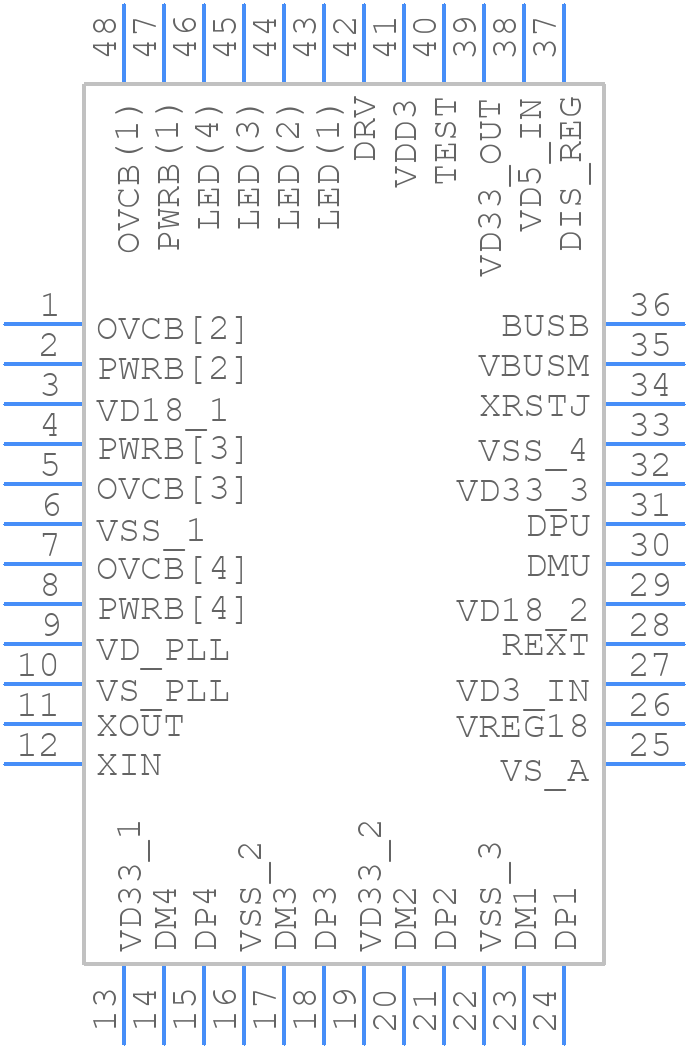

Use the download button to access the FE1.1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Bus Controllers
