FE1.1S - Terminus Technology

Description: USB 2.0 HIGH SPEED 4-PORT HUB CONTROLLER

Download FE1.1S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

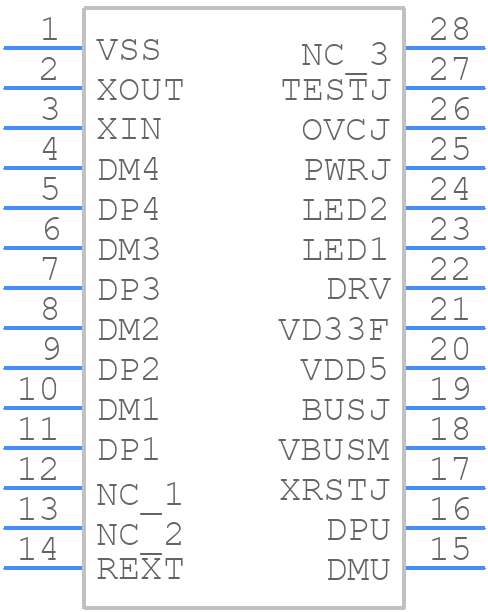

Symbol
FE1.1S - Terminus Technology - PCB symbol
click to zoom
PCB Footprints
FE1.1S - Terminus Technology PCB footprint - Small Outline Packages - Small Outline Packages - 28-pin SSOP (Body Size: 10x4 mm, Pitch: 0.64mm)
click to zoom
3D Models
FE1.1S - Terminus Technology - 3D model - Small Outline Packages - 28-pin SSOP (Body Size: 10x4 mm, Pitch: 0.64mm)
click to zoom

FE1.1S Details

  • Manufacturer Part Number:

    FE1.1S

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SSOP-28

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Terminus

  • Additional Feature:

    ALSO REQUIRES 3.3V AND 1.8V REGULATIR NOMINAL SUPPLY

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    9.9 mm

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    DUAL

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

FE1.1S Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
  • Use a reliable communication protocol like SPI or I2C, and ensure proper signal termination and impedance matching. Also, implement error detection and correction mechanisms to handle data transmission errors.
  • The FE1.1S can operate within a temperature range of -40°C to 85°C. However, it's recommended to operate within a narrower range (0°C to 70°C) for optimal performance and reliability.
  • Ensure that the power supply voltage (VCC) is stable and within the recommended range (1.8V to 3.6V). Use a low-dropout regulator (LDO) or a switching regulator to maintain a stable voltage supply. Power sequencing is critical; ensure that the power supply is stable before enabling the FE1.1S.
  • Use 0.1uF to 1uF decoupling capacitors (X7R or X5R type) placed as close as possible to the FE1.1S power pins. This helps to filter out noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FE1.1S Overview

Use the download button to access the FE1.1S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FE1.1, or try a keyword search, such as Bus Controllers
