For optimal performance, it's recommended to follow a star-point grounding scheme, keep the input and output tracks separate, and use a large copper area for heat dissipation. A thermal pad or heat sink can be used to improve thermal management.
To ensure EMC, use a metal shield or screen around the FE6935, keep the input and output cables away from each other, and use ferrite beads or common-mode chokes to filter out electromagnetic interference.
The FE6935 can operate safely up to 85°C, but it's recommended to keep the operating temperature below 70°C for optimal performance and reliability.
Yes, the FE6935 is designed to withstand vibrations up to 10g, but it's recommended to use a secure mounting method, such as screwing or adhesive, to prevent mechanical stress and ensure reliable operation.
Common issues can be troubleshooted by checking the input and output impedance, ensuring proper grounding, and verifying the power supply voltage. Oscillation can be reduced by adding a snubber circuit or a ferrite bead to the output.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FE6935 Overview

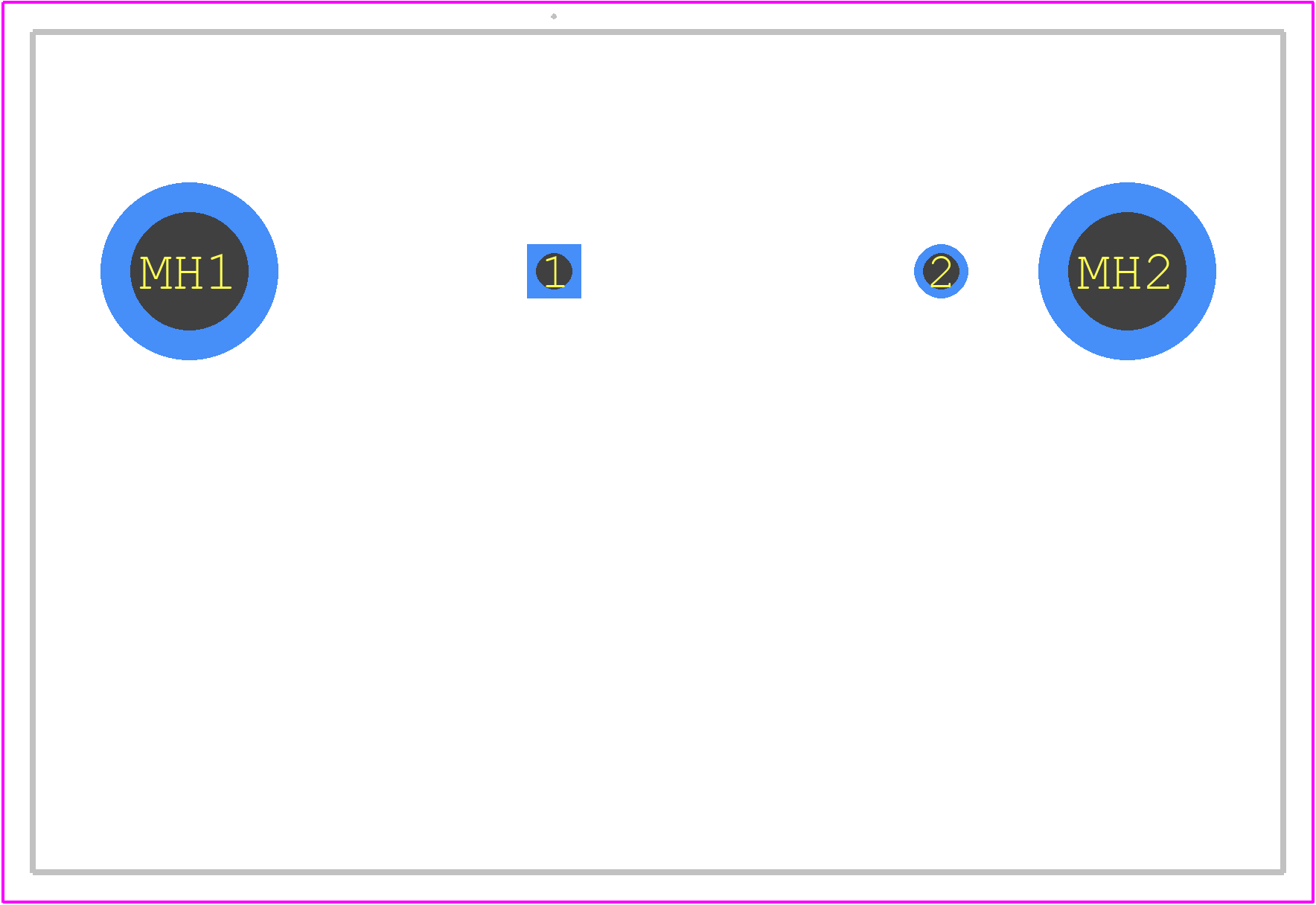

Use the download button to access the FE6935 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FE693,
or try a keyword search, such as Terminals and Terminal Blocks
