FFSM1065B - onsemi

Description: Diode 650 V 13.5A Surface Mount 4-PQFN (8x8) 40 µA @ 650 V,-55°C ~ 175°C

Download FFSM1065B Model

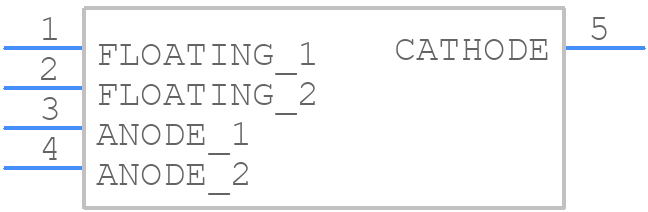

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FFSM1065B - onsemi PCB footprint - Other - Other - PQFN4 8X8, 2P CASE 483AP ISSUE A_2025
click to zoom
3D Models
FFSM1065B - onsemi  - 3D model - Other - PQFN4 8X8, 2P CASE 483AP ISSUE A_2025
click to zoom

FFSM1065B Details

  • Manufacturer Part Number:

    FFSM1065B

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PQFN-4

  • Manufacturer Package Code:

    483AP

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.62

  • Application:

    EFFICIENCY

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON CARBIDE

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.7 V

  • JESD-30 Code:

    S-PSSO-N4

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    49 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    13.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Dissipation-Max:

    98 W

  • Rep Pk Reverse Voltage-Max:

    650 V

  • Reverse Current-Max:

    40 µA

  • Reverse Test Voltage:

    650 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30
