- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for FG11X5R0J107MRT00
- Part Number FG11X5R0J107MRT00
- Manufacturer TDK
- Pin Count 2
- Part Category Capacitor
- Package Category Other

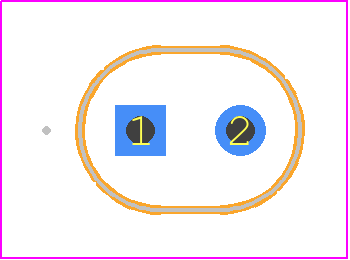

- Footprint Name Other - FG11
- Released Date Jun 21, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
FG11X5R0J107MRT00 Details
-
Manufacturer Part Number:
FG11X5R0J107MRT00
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
Manufacturer:
TDK Corporation
-
YTEOL:
0
-
Capacitor Type:
CERAMIC CAPACITOR
-
Dielectric Material:
CERAMIC
-
JESD-609 Code:
e3
-
Number of Terminals:
2
FG11X5R0J107MRT00 Frequently Asked Questions (FAQs)
-
The recommended land pattern for the FG11X5R0J107MRT00 capacitor can be found in the TDK Corporation's Capacitor Land Pattern document, which provides guidelines for pad layout and spacing to ensure reliable soldering and performance.
-
While the datasheet provides general information on the capacitor's frequency characteristics, TDK Corporation recommends consulting their application notes and technical papers on high-frequency capacitor selection and design considerations for more specific guidance.
-
The FG11X5R0J107MRT00 capacitor has an MSL rating of 1, which means it can withstand normal humidity and temperature conditions without requiring special handling or storage precautions.
-
While the datasheet specifies an operating temperature range of -55°C to +125°C, TDK Corporation recommends consulting their reliability and derating guidelines for capacitors in high-temperature applications to ensure the component's performance and lifespan.
-
TDK Corporation provides ESR data for their capacitors in their technical documentation and application notes. For the FG11X5R0J107MRT00, the ESR values can be found in the Capacitor Impedance Characteristics document.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
FG11X5R0J107MRT00 Overview
Use the download button to access the FG11X5R0J107MRT00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FG11X,
or try a keyword search, such as Ceramic Capacitors
