- Part Number FH12-14S-0.5SH
- Manufacturer Hirose
- Pin Count 16
- Part Category Connector
- Package Category Other
- Footprint Name Other - FH12-14S-0.5SH-1
- Released Date Dec 21, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
FH12-14S-0.5SH Details
-
Manufacturer Part Number:
FH12-14S-0.5SH
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
0
-
Additional Feature:
BOTTOM CONTACT
-
Body Breadth:
0.079 inch
-
Body Depth:
0.22 inch
-
Body Length:
0.437 inch
-
Connector Type:
FFC/FPC CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
FH12-14S-0.5SH Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 N·m to 1.0 N·m (0.37 lbf·in to 0.74 lbf·in). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the FH12-14S-0.5SH connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's essential to ensure that the connector is properly secured and the screw terminals are tightened to the recommended torque to prevent loosening or damage.
-
The FH12-14S-0.5SH connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure that the connector is properly sealed and protected from the environment to maintain its rating.
-
The FH12-14S-0.5SH connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
-
While the FH12-14S-0.5SH connector is designed for use with 0.5 mm² (AWG20) wire, it can be used with other wire sizes. However, it's essential to ensure that the wire size is compatible with the connector's terminal size and that the wire is properly secured to prevent damage or electrical issues.
Trust Checks
Community Provided
System Verified
Community Approved
FH12-14S-0.5SH Overview

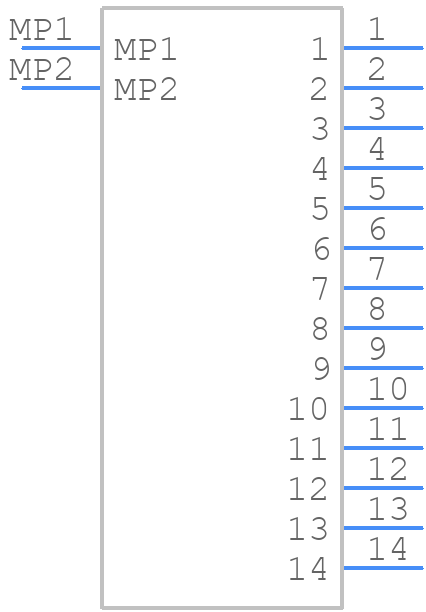

Use the download button to access the FH12-14S-0.5SH schematic symbol, PCB footprint, and 3D model.
