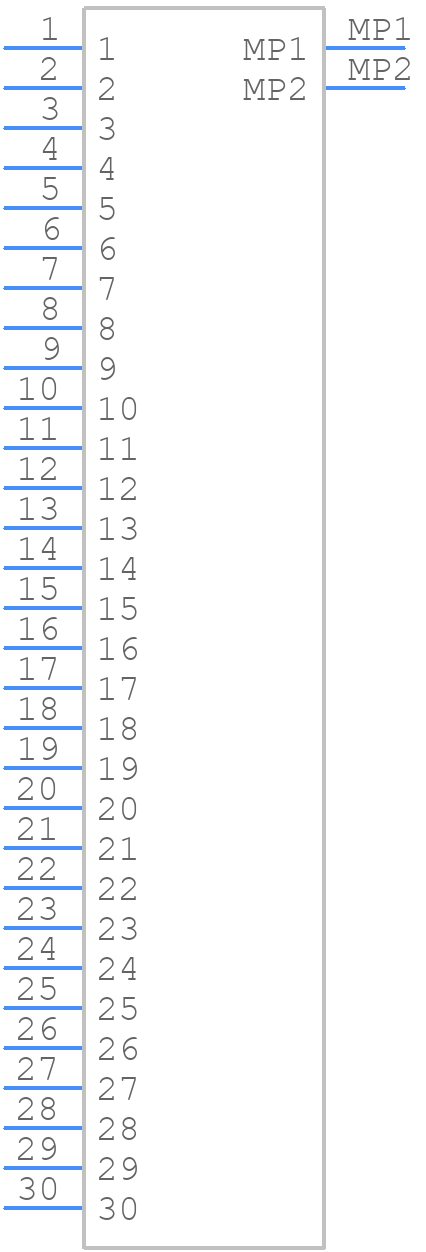

FH12-30S-0.5SH - Hirose

FH12-30S-0.5SH Details

• Manufacturer Part Number:

  FH12-30S-0.5SH

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• Manufacturer:

  Hirose Electric Co Ltd

• YTEOL:

  0

• Additional Feature:

  BOTTOM CONTACT

• Body Breadth:

  0.079 inch

• Body Depth:

  0.22 inch

• Body Length:

  0.752 inch

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  50 mΩ

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  150VAC V

• Durability:

  20 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  ZIF N

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BROWN

• Insulator Material:

  POLYPHENYLENE SULFIDE

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.02 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  EJECT LEVER

• Mounting Option 2:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.5 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  30

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  ZIF N
